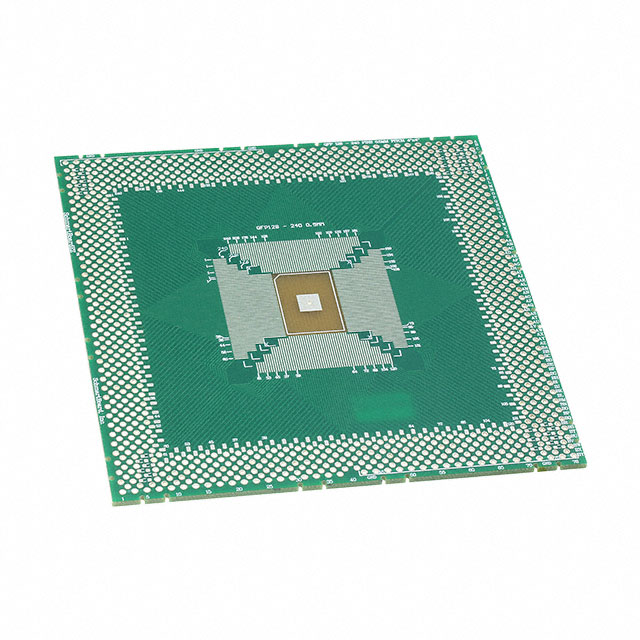

202-0032-01

Active

Schmartboard, Inc.

QFP, 128 - 240 PINS 0.5MM PITCH,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFP, 128 - 240 PINS 0.5MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0032-01

Number of Positions	240
Package Accepted	TQFP, PQFP, QFP
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "

QFP, 128 - 240 PINS 0.5MM PITCH,

Part	Package Accepted	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Pitch [x]	Pitch [x]	Number of Positions	Proto Board Type
Schmartboard, Inc. 202-0032-01	PQFP, QFP, TQFP	4 in	101.6 mm	101.6 mm	4 "	0.5 mm	0.02 in	240	SMD to Plated Through Hole Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.00

General part information

QFP, 128 - 240 PINS 0.5MM PITCH,

Technical documentation and resources
