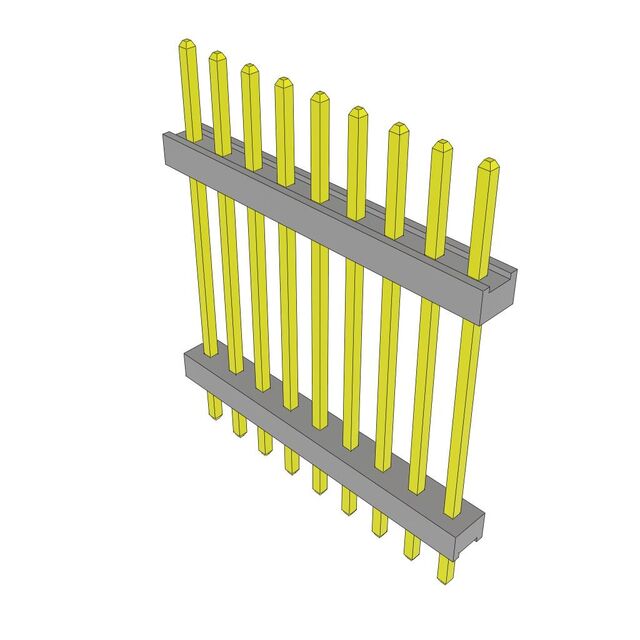

TW-09-08-S-S-545-115

Active

Samtec Inc.

CONN BRD STACK 2.00 9POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2.00 9POS

Technical Specifications

Parameters and characteristics for this part

Specification	TW-09-08-S-S-545-115

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin	0.831 in
Length - Overall Pin	21.107 mm
Length - Post (Mating) [x]	0.171 in
Length - Post (Mating) [x]	4.343 mm
Length - Stack Height [x]	13.843 mm
Length - Stack Height [x]	0.545 in
Length - Tail [x]	0.115 in
Length - Tail [x]	2.921 mm
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin	Length - Overall Pin	Number of Positions	Contact Finish - Post (Mating)	Termination	Row Spacing	Row Spacing	Length - Tail [x]	Length - Tail [x]	Color	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail [custom]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. TW-09-08-T-D-600-110	0.121 in	3.073 mm	0.831 in	21.107 mm	18	Tin	Solder	2 mm	0.079 in	0.11 in	2.794 mm	Black	0.6 in	15.24 mm	2	Through Hole	0.079 in	2 mm
Samtec Inc. TW-09-08-G-D-375-165	0.291 in	7.391 mm	0.831 in	21.107 mm	18	Gold	Solder	2 mm	0.079 in			Black	0.375 in	9.525 mm	2	Through Hole	0.079 in	2 mm	4.191 mm	0.165 "	0.51 Ám	20 Áin
Samtec Inc. TW-09-08-T-D-577-169	0.085 in	2.159 mm	0.831 in	21.107 mm	18	Tin	Solder	2 mm	0.079 in			Black	0.577 in	14.656 mm	2	Through Hole	0.079 in	2 mm	4.293 mm				0.169 in
Samtec Inc. TW-09-08-S-S-545-115	0.171 in	4.343 mm	0.831 in	21.107 mm	9	Gold	Solder			0.115 in	2.921 mm	Black	0.545 in	13.843 mm	1	Through Hole	0.079 in	2 mm			0.76 µm	30 µin
Samtec Inc. TW-09-08-T-D-620-065
Samtec Inc. TW-09-08-G-D-492-185	0.154 in	3.912 mm	0.831 in	21.107 mm	18	Gold	Solder	2 mm	0.079 in			Black			2	Through Hole	0.079 in	2 mm	4.699 mm		0.51 Ám	20 Áin	0.185 "	12.5 mm	0.492 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.11
