25641001RP2

Active

MH Connectors

25641001RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25641001RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25641001RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Material	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Termination	Number of Rows	Fastening Type	Material Flammability Rating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Connector Type	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
MH Connectors 25641001RP2	Phosphor Bronze	10	Gold	0.177 in	4.5 mm	Black	2.54 µm	100 µin	0.079 in	2 mm	All	Solder	2	Push-Pull	UL94 V-0	Female Socket	0.079 in	2 mm	Through Hole	0.118 in	3 mm	Receptacle	Square	Tin	Flash	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 2.99
Newark	Each	500	$ 3.66
		1000	$ 3.44

General part information

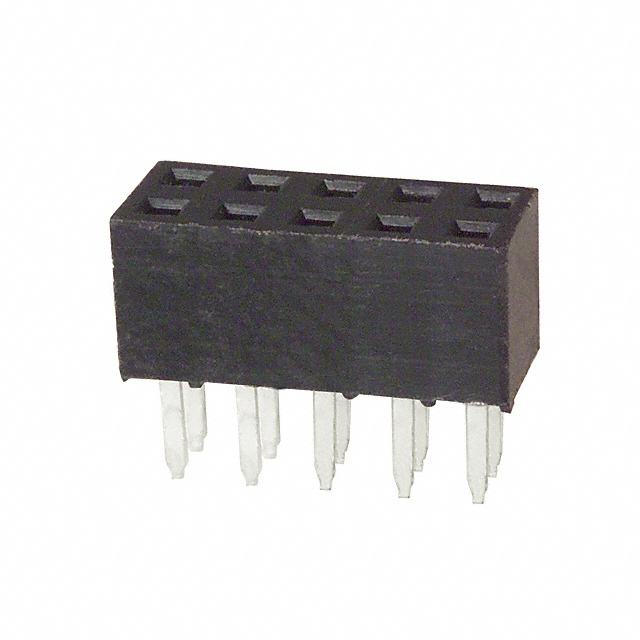

10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
