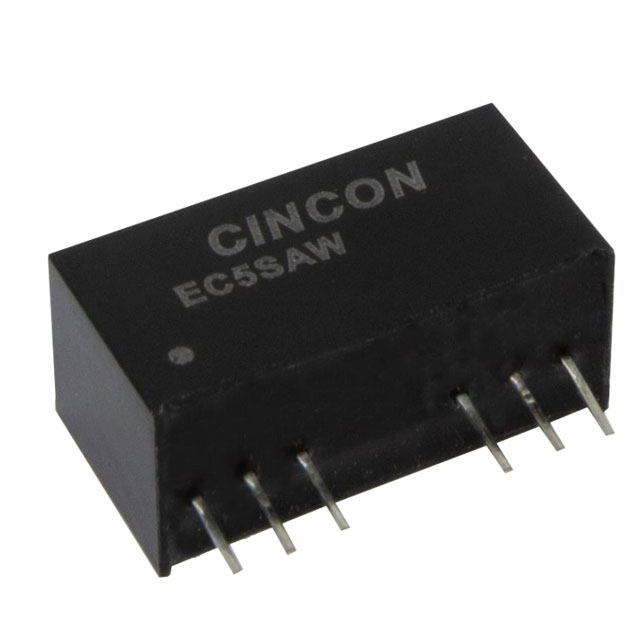

EC5SAW-24D12N

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-36VI +/-12VO 417MA SIP8

EC5SAW-24D12N

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-36VI +/-12VO 417MA SIP8

Description Specifications Series Pricing CAD Documents

Description

General part information

EC5SAW Series

Isolated Module DC DC Converter 2 Output 12V -12V 417mA, 417mA 9V - 36V Input

Technical Specifications

Parameters and characteristics for this part

Specification	EC5SAW-24D12N

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Enable, Active Low
Current - Output (Max)	417 mA
Efficiency	89 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	6 Leads
Package Name	8-SIP Module
Power (Watts)	10 W
Size / Dimension Height	0.47 in
Size / Dimension Length	0.87 in
Size / Dimension Width	0.37 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	3 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

EC5SAW Series

Part	Control Features	Number of Outputs	Voltage - Isolation	Efficiency	Voltage - Input (Max)	Voltage - Output 1	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Applications	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Voltage - Input (Min)	Approval Agency	Type	Power (Watts)	Package Leads	Package Name	Features	Voltage - Output 2
Cincon Electronics Co. LTD EC5SAW-24S15N	Active Low Enable	1	3 kV	89.5 %	36 V	15 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	666 mA	9 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off
Cincon Electronics Co. LTD EC5SAW-24D05N	Active Low Enable	2	3 kV	85 %	36 V	5 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	1 A	9 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off	-5 V
Cincon Electronics Co. LTD EC5SAW-48D05N	Active Low Enable	2	3 kV	85 %	75 V	5 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	1 A	18 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off	-5 V
Cincon Electronics Co. LTD EC5SAW-48S12N	Active Low Enable	1	3 kV	88 %	75 V	12 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	833 mA	18 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off
Cincon Electronics Co. LTD EC5SAW-48D15N	Active Low Enable	2	3 kV	88 %	75 V	15 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	333 mA	18 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off	-15 V
Cincon Electronics Co. LTD EC5SAW-24S33N	Active Low Enable	1	3 kV	81.5 %	36 V	3.3 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	2 A	9 V	CE	Isolated Module	6.6 W	6 Leads	8-SIP Module	Remote On/Off
Cincon Electronics Co. LTD EC5SAW-48S05N	Active Low Enable	1	3 kV	85 %	75 V	5 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	2 A	18 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off
Cincon Electronics Co. LTD EC5SAW-48S15N	Active Low Enable	1	3 kV	88 %	75 V	15 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	666 mA	18 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off
Cincon Electronics Co. LTD EC5SAW-24D15N	Active Low Enable	2	3 kV	89 %	36 V	15 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	333 mA	9 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off	-15 V
Cincon Electronics Co. LTD EC5SAW-24D12N	Active Low Enable	2	3 kV	89 %	36 V	12 V	0.47 in	0.37 in	0.87 in	ITE (Commercial)	Through Hole	105 °C	-40 °C	417 mA	9 V	CE	Isolated Module	10 W	6 Leads	8-SIP Module	Remote On/Off	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
