89505 002100

Active

Belden Inc.

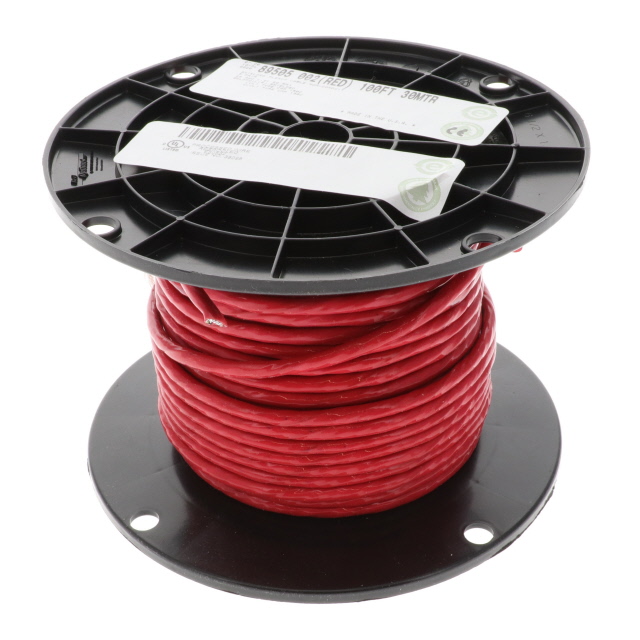

MULTI-PAIR 10COND 24AWG RED 100'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10COND 24AWG RED 100'

Technical Specifications

Parameters and characteristics for this part

Specification	89505 002100

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.197 in
Jacket (Insulation) Diameter [diameter]	5 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Material	Usage	Number of Conductors	Length [x]	Length [x]	Shield Coverage	Shield Type	Jacket Color	Jacket (Insulation) Material	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Features	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Length	Ratings
Belden Inc. 89505 002100	0.356 mm	0.014 in	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Computer	10	30.5 m	100 ft	100 %	Foil	Red	Fluorinated Ethylene-Propylene (FEP) Plenum	Multi-Pair	200 °C	-70 °C	32 AWG	7	Aluminum	Drain Wire	24 AWG	0.197 in	5 mm
Belden Inc. 89505 0021000	0.356 mm	0.014 in	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Computer	10			100 %	Foil	Red	Fluorinated Ethylene-Propylene (FEP) Plenum	Multi-Pair	200 °C	-70 °C	32 AWG	7	Aluminum	Drain Wire	24 AWG	0.197 in	5 mm	300 V	1000 ft	304.8 m	UL Style CMP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (5 Pair Twisted) Conductor Multi-Pair Cable Red 24 AWG Foil 100.0' (30.5m)
