Connectors, Interconnects
794716-1
ActiveTE Connectivity Raychem Cable Protection

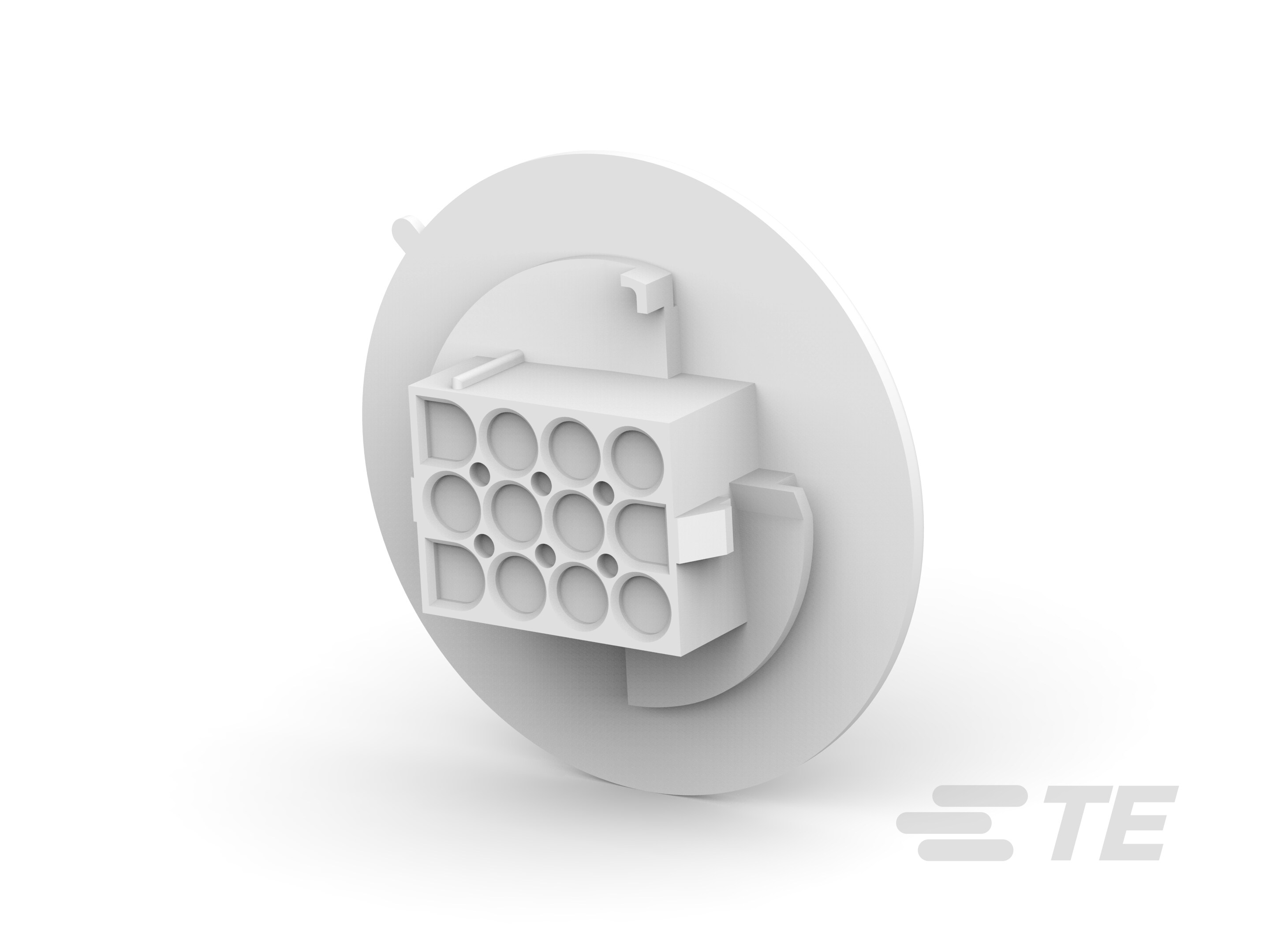

CONN RCPT HSG 12POS UMNL FLANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
794716-1
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 12POS UMNL FLANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 794716-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Twist and Lock |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.58 | |||
| 2500 | $ 0.54 | |||
Description
General part information
794716 Series
12 Rectangular Connectors - Housings Receptacle Natural
