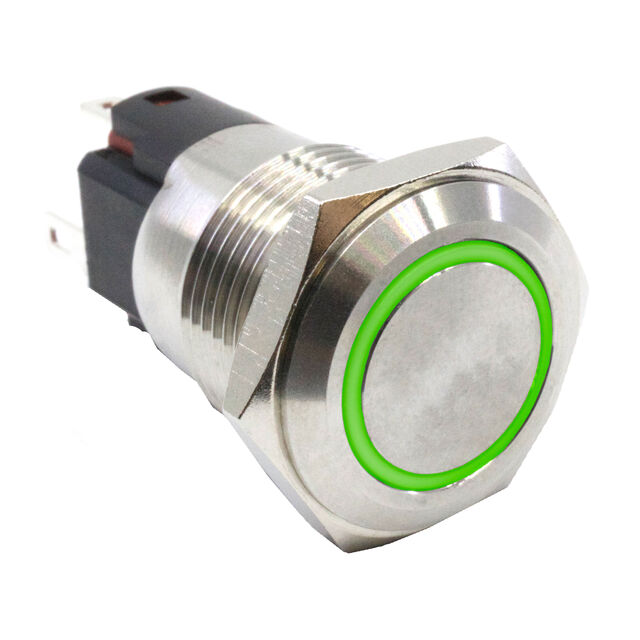

Specification	PVB3F230SS334

Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Green
Color - Actuator/Cap	Silver
Current Rating	2 A, 500 mA
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Illuminated, Anti-Vandal
Voltage Rating - AC	220 V
Voltage Rating - DC	24 V

pvb3 Series

Part	Mounting Type	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection IP Rating	Ingress Protection Description	Circuit	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Actuator Type	Color - Actuator/Cap	Type	Illumination Type	Color	Quick Connect Size (0.110")	Termination Style	Illumination Voltage (Nominal)	Illumination Voltage (Nominal)	Electrical Life (Cycles)	Mechanical Life (Cycles)
E-Switch PVB3H2B0113R1	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-Mom	Button Round	Black	Anti-Vandal Illuminated	LED	Blue Green Red	0.11 in	Quick Connect Solder	1.8 VDC 2.8 VDC	1.8 2.8 2.8 VDC	50000	1000000 Cycles
E-Switch PVB3F2B0SS301	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-Mom	Button Flush Round	Silver	Anti-Vandal Illuminated	LED	White	0.11 in	Quick Connect Solder	2.8 VDC		50000	1000000 Cycles
E-Switch PVB3F2B0113R1	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-Mom	Button Flush Round	Black	Anti-Vandal Illuminated	LED	Blue Green Red	0.11 in	Quick Connect Solder	1.8 VDC 2.8 VDC	1.8 2.8 2.8 VDC	50000	1000000 Cycles
E-Switch PVB3F2B0SS644	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-Mom	Button Flush Round	Silver	Anti-Vandal Illuminated	LED	Blue	0.11 in	Quick Connect Solder	12 V		50000	1000000 Cycles
E-Switch PVB3F230SS334	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-On	Button Flush Round	Silver	Anti-Vandal Illuminated	LED	Green	0.11 in	Quick Connect Solder	12 V		50000	500000 Cycles
E-Switch PVB3H230SS3R1	Front Panel Mount	16 mm	Circular	2 A 500 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	SPDT	220 V	24 V	On-On	Button Round	Silver	Anti-Vandal Illuminated	LED	Blue Green Red	0.11 in	Quick Connect Solder	1.8 VDC 2.8 VDC	1.8 2.8 2.8 VDC	50000	500000 Cycles
