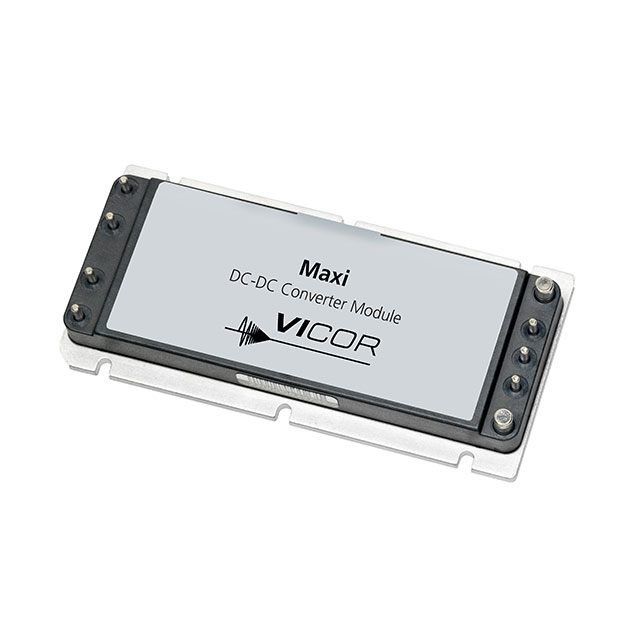

V110A24T400BL
ActiveVicor Corporation
DC DC CONVERTER 24V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V110A24T400BL
ActiveVicor Corporation
DC DC CONVERTER 24V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V110A24T400BL |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16.67 A |
| Efficiency | 86.6 % |
| Features | OVP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Full Brick |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [z] | 0.62 in |
| Size / Dimension [z] | 15.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 154 V |
| Voltage - Input (Min) [Min] | 66 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 496.71 | |
Description
General part information
V110A24T400 Series
Isolated Module DC DC Converter 1 Output 24V 16.67A 66V - 154V Input
