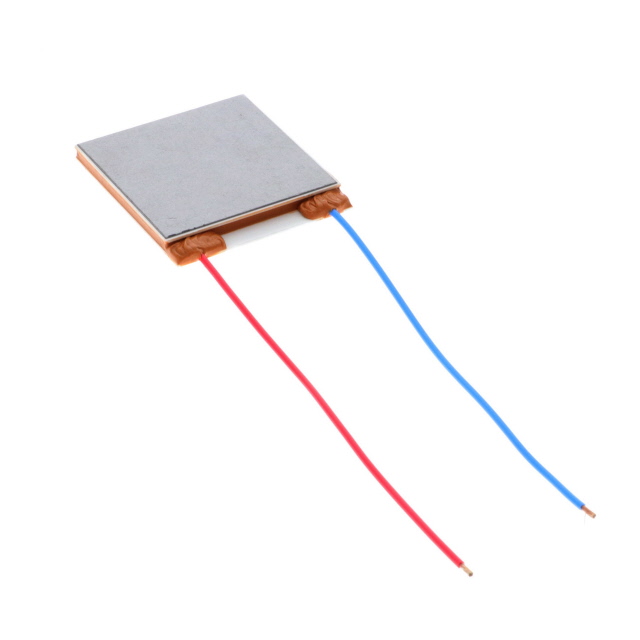

TG12-8-01L

Active

Marlow Industries, Inc.

TEG GENERATOR 40.13X40.13X3.53MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEG GENERATOR 40.13X40.13X3.53MM

Technical Specifications

Parameters and characteristics for this part

Part	Features	Operating Temperature	Height [z]	Qmax @ Th	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Number of Stages	Current - Max [Max]	Size / Dimension
Marlow Industries, Inc. TG12-4-01LS	Lapped Lead Wires Sealed	200 °C	3.33 mm	0.6 W	1.9 V	30 mm	34 mm	5.72 Ohms	1	800 mA
Marlow Industries, Inc. TG12-8-01G	Graphite Pads Lead Wires	200 °C	3.63 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-2.5-01L	Lapped Lead Wires	200 °C	3.94 mm	0.4 W	1.9 V	30 mm	34.01 mm		1	500 mA
Marlow Industries, Inc. TG12-2.5-01	Lead Wires	200 °C	4.04 mm	0.4 W	1.9 V	30 mm	34.01 mm		1	500 mA
Marlow Industries, Inc. TG12-4-01L	Lapped Lead Wires	200 °C	3.33 mm	0.6 W	1.9 V	30 mm	34 mm	5.72 Ohms	1	800 mA
Marlow Industries, Inc. TG12-6-01S	Lead Wires Sealed	200 °C	4.01 mm	0.9 W	1.9 V	40.13 mm	44.7 mm	3.82 Ohms	1	1.1 A	Rectangular
Marlow Industries, Inc. TG12-8-01S	Lead Wires Sealed	200 °C	3.63 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-8-01	Lead Wires	200 °C	3.63 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-8-01L	Lapped Lead Wires	200 °C	3.53 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-8-01LSG	Graphite Pads Lapped Lead Wires Sealed	200 °C	3.53 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 33.66

General part information

Peltier Module 1.2W @ 50°C 1.5 A 200°C

Technical documentation and resources

No documents available
