2016682-4
ActiveTE Connectivity Raychem Cable Protection

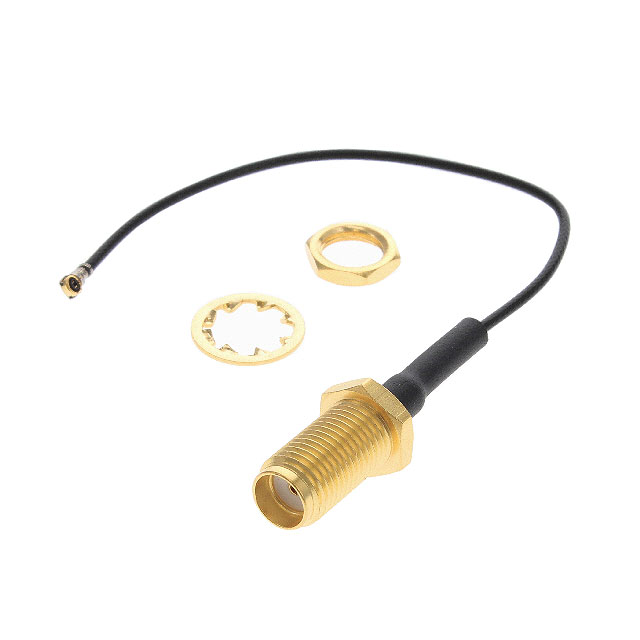

RF / COAXIAL CABLE ASSEMBLY, 90° UMCC PLUG TO SMA BULKHEAD JACK, 1.13MM, 50 OHM, 7.9 ", 200 MM
Deep-Dive with AI
Search across all available documentation for this part.
2016682-4
ActiveTE Connectivity Raychem Cable Protection
RF / COAXIAL CABLE ASSEMBLY, 90° UMCC PLUG TO SMA BULKHEAD JACK, 1.13MM, 50 OHM, 7.9 ", 200 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016682-4 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1814400 Series
SMA Bulkhead to UMCC Cable Assembly, .2 m [.66 ft], Black Cable, 0 – 9 GHz, 50 ohm, FEP Jacket, 1.13 mm [.044 in] Diameter, SMA Jack End A
