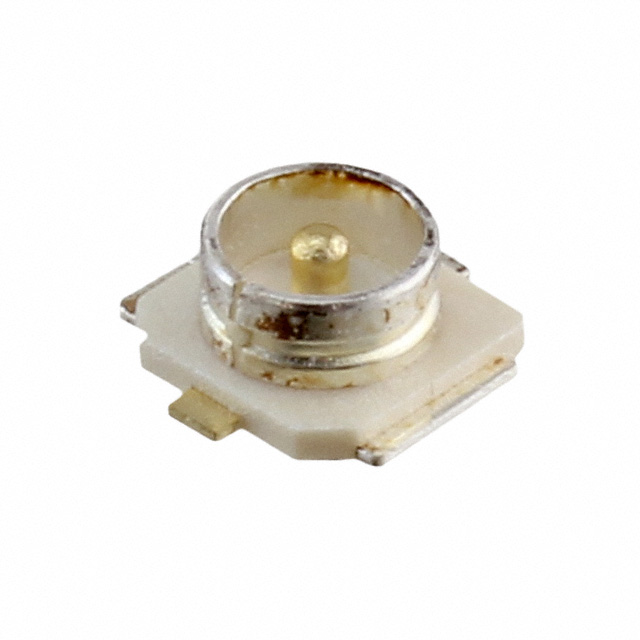

A-1JB-100

Obsolete

Amphenol RF

RF / COAXIAL CONNECTOR, AMC COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BRASS

Search across all available documentation for this part.

Obsolete

Amphenol RF

RF / COAXIAL CONNECTOR, AMC COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BRASS

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Dielectric Material	Connector Type	Mounting Type	Mating Cycles	Connector Style	Center Contact Material	Impedance	Shield Termination	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Housing Color	Frequency - Max [Max]	Center Contact Plating
Amphenol RF A-1JB-100	500 V	Liquid Crystal Polymer (LCP)	Jack Male Pin	Surface Mount	30	AMC U.FL (UMCC)	Brass	50 Ohms	Solder	Solder	Snap-On	90 °C	-40 °C	1	White	6000 MHz	Gold
Amphenol RF A-1JB	60 VDC	Liquid Crystal Polymer (LCP)	Jack Male Pin	Surface Mount	30	AMC U.FL (UMCC)	Brass	50 Ohms	Solder	Solder	Snap-On	90 °C	-40 °C	1	White	6000 MHz	Gold
Amphenol RF A-1JB-500	500 V	Liquid Crystal Polymer (LCP)	Jack Male Pin	Surface Mount	30	AMC U.FL (UMCC)	Brass	50 Ohms	Solder	Solder	Snap-On	90 °C	-40 °C	1	White	6000 MHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

U.FL (UMCC), AMC Connector Jack, Male Pin 50 Ohms Surface Mount Solder
