HSP054-4N10

Obsolete

STMicroelectronics

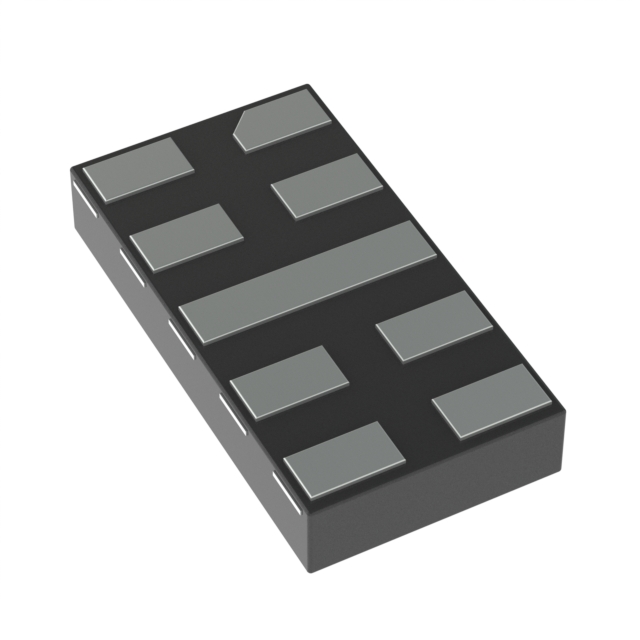

TVS DIODE 5VWM 3.8VC 10UQFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TVS DIODE 5VWM 3.8VC 10UQFN

Technical Specifications

Parameters and characteristics for this part

Specification	HSP054-4N10

Applications	USB
Current - Peak Pulse (10/1000µs)	3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-XFDFN
Power Line Protection	True
Supplier Device Package	10-UQFN
Supplier Device Package [x]	1.9
Supplier Device Package [y]	1
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Clamping (Max) @ Ipp	3.8 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Mounting Type	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Type	Power Line Protection	Package / Case	Applications
STMicroelectronics HSP054-4N10	Surface Mount	3.8 V	5 V	150 °C	-40 °C	10-UQFN	1.9	1	3 A	4	Steering		10-XFDFN	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.8V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 10-uQFN (1.9x1)
