316-026-500-107
ActiveEDAC Inc.

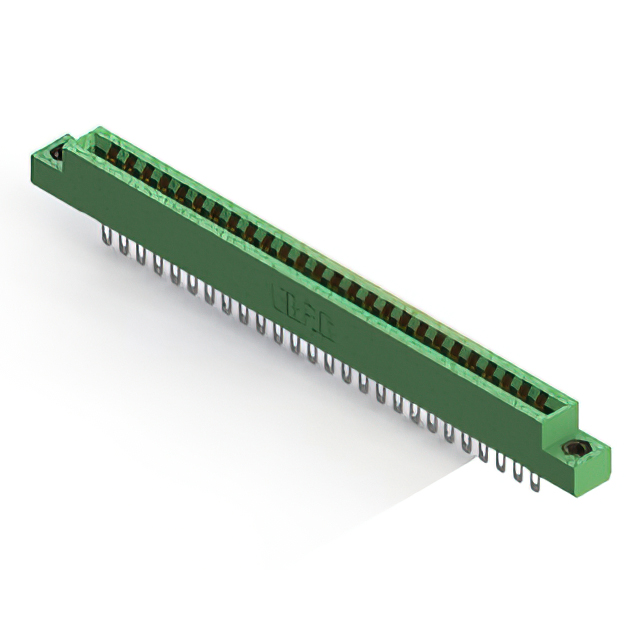

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
316-026-500-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-026-500-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
316-026 Series
| Part | Termination | Contact Finish | Contact Type | Read Out | Gender | Color | Flange Feature | Card Type | Number of Positions | Contact Material | Number of Rows | Pitch [x] | Pitch [x] | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | Gold | Cantilever | Dual | Female | Green | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |||
EDAC Inc. | Solder Eyelet(s) | Gold | Cantilever | Dual | Female | Green | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | ||||
EDAC Inc. | Solder | Gold | Cantilever | Dual | Female | Green | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Solder | Gold | Cantilever | Dual | Female | Green | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Solder Eyelet(s) | Tin | Cantilever | Dual | Female | Green | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | Polyester Thermoplastic | |||||
EDAC Inc. | Solder Eyelet(s) | Gold | Cantilever | Dual | Female | Green | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | Tin | Cantilever | Dual | Female | Green | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Panel Mount Through Hole | |||||
EDAC Inc. | Solder | Gold | Cantilever | Dual | Female | Green | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Solder | Gold | Cantilever | Dual | Female | Green | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Solder Eyelet(s) | Tin | Cantilever | Dual | Female | Green | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 52 | Copper Alloy | 2 | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-026 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
