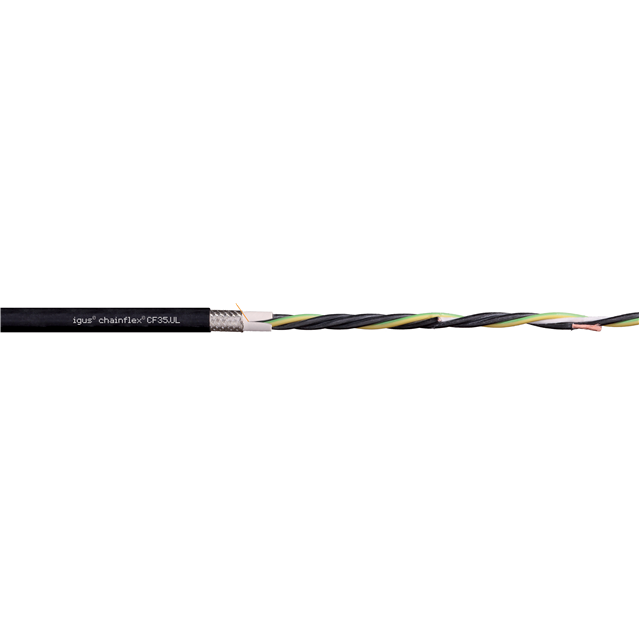

CF35-UL-350-03-O-PE
ActiveIgus
CABLE 3COND 2AWG BLACK SHD 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF35-UL-350-03-O-PE
ActiveIgus
CABLE 3COND 2AWG BLACK SHD 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF35-UL-350-03-O-PE |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (XLPE), Irradiated |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Rip Cord, UV Resistant, Oil Resistant |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Braid |
| Voltage | 1000 V |
| Wire Gauge | 2 AWG |
CF35 Series
| Part | Jacket (Insulation) Material | Conductor Insulation | Wire Gauge | Shield Material | Shield Coverage | Cable Type | Length | Features | Jacket Color | Voltage | Shield Type | Number of Conductors | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thermoplastic Elastomer (TPE) | Polyethylene (XLPE) Irradiated | 44 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant Rip Cord UV Resistant | Black | 1000 V | Braid | 3 | Copper Bare | 33.5 mm | 1.319 in | |||
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 12 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 13.49 mm | 0.531 in | UL Style 21184 | |
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 10 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 16 mm | 0.63 in | UL Style 21184 | |
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 8 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 0.768 in | UL Style 21184 | 19.51 mm | |
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 16 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 10.01 mm | 0.394 in | UL Style 21184 | |
Thermoplastic Elastomer (TPE) | Polyethylene (XLPE) Irradiated | 10 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant Rip Cord UV Resistant | Black | 1000 V | Braid | 3 | Copper Bare | 14.5 mm | 0.571 in | |||
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 6 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 25 mm | 0.906 in | UL Style 21184 | |
Igus | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) | 18 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant UV Resistant | Black | 1000 V | Braid Foil | 4 | Copper Bare | 8.51 mm | 0.335 " | UL Style 21184 | |
Thermoplastic Elastomer (TPE) | Polyethylene (XLPE) Irradiated | 2 AWG | Aluminum Copper Tinned | 90 % 100 % | Multi-Conductor | Enter Number of Feet in Order Quantity | Flame Retardant Oil Resistant Rip Cord UV Resistant | Black | 1000 V | Braid | 3 | Copper Bare |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.54 | |
| 100 | $ 55.24 | |||
| 500 | $ 53.04 | |||
| 1000 | $ 46.30 | |||
Description
General part information
CF35 Series
3 Conductor Multi-Conductor Cable Black 2 AWG Braid Enter Number of Feet in Order Quantity
