M7SXK-3710R

Active

D-SUB CABLE - MFM37K/MC37M/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MFM37K/MC37M/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

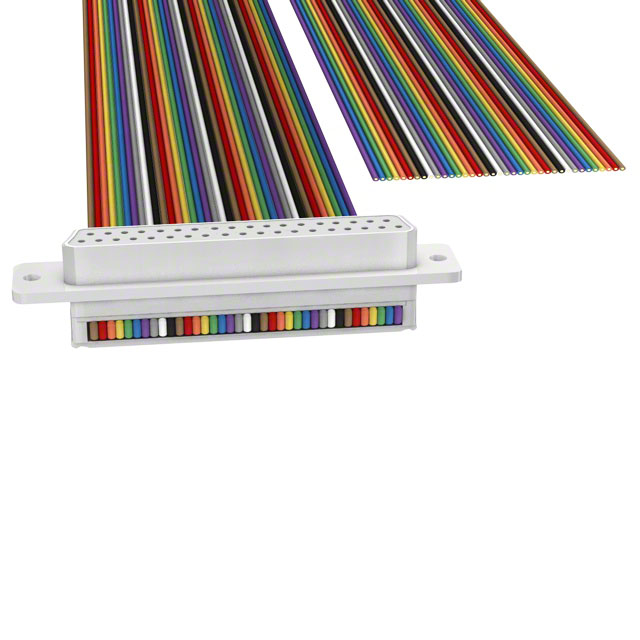

D-Sub Cable Assembly DB37 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources

Part	Shielding	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Length	Length	1st Connector	Type	Color
3M M7SXK-0906J	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	9	6 ft	1.83 m	Female Sockets, Receptacle	DB9
3M M7SXK-1510R	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	15	10 ft	3.05 m	Female Sockets, Receptacle	DB15	Multiple, Ribbon
3M M7SXK-0910J	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	9	10 ft	3.05 m	Female Sockets, Receptacle	DB9
3M M7SXK-2506R	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold		6 ft	1.83 m	Female Sockets, Receptacle	DB25	Multiple, Ribbon
3M M7SXK-3710R	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	37	10 ft	3.05 m	Female Sockets, Receptacle	DB37	Multiple, Ribbon
3M M7SXK-2506J	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold		6 ft	1.83 m	Female Sockets, Receptacle	DB25
3M M7SXK-0906R	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	9	6 ft	1.83 m	Female Sockets, Receptacle	DB9	Multiple, Ribbon
3M M7SXK-3710J	Unshielded	Individual Wire Leads	0.76 Ám	30 Áin	Gold	37	10 ft	3.05 m	Female Sockets, Receptacle	DB37
