MNU10-250DMIX-BOTTLE

Active

CONN QC TAB 10-12AWG 0.250 50PC

Search across all available documentation for this part.

Active

CONN QC TAB 10-12AWG 0.250 50PC

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN QC RCPT 10-12AWG 0.250 50PC

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Mounting Type	Features	Termination	Insulation	Gender	Tab Width	Tab Width	Length - Overall	Length - Overall [x]	Insulation Diameter	Insulation Diameter	Contact Finish	Tab Thickness	Tab Thickness	Color	Contact Material
3M MNU10-250DFIX-BOTTLE	12 AWG	10 AWG	Standard	Free Hanging (In-Line)	Butted Seam	Crimp	Fully Insulated	Female	6.35 mm	0.25 in
3M MNU10-250DMIX-BOTTLE	12 AWG	10 AWG	Standard	Free Hanging (In-Line)	Butted Seam	Crimp	Fully Insulated	Male	6.35 mm	0.25 in	26.67 mm	1.05 in	0.25 "	6.35 mm	Tin	0.032 in	0.81 mm	Yellow	Copper, ETP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 2.22

General part information

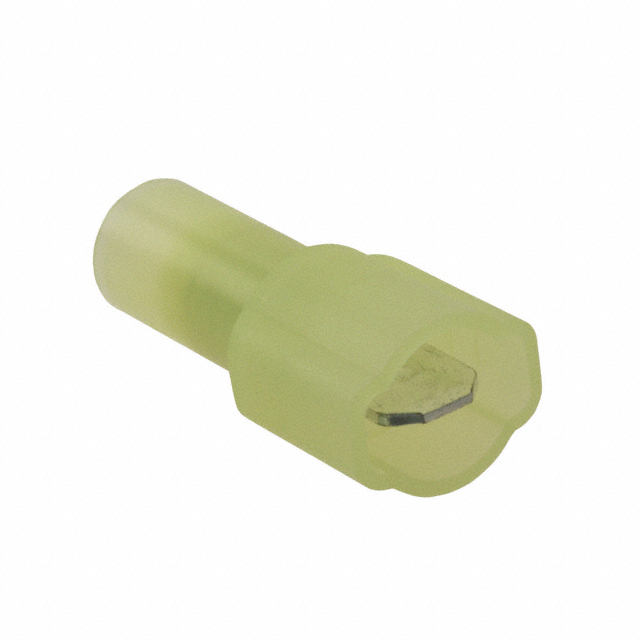

0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Fully Insulated
