V7-9W2AE9-048

Active

Honeywell Sensing and Productivity Solutions

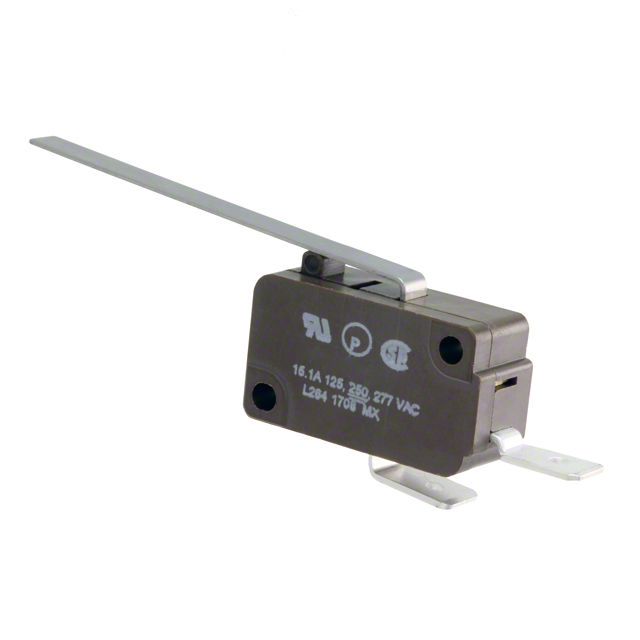

SWITCH SNAP ACT SPST-NO 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V7-9W2AE9-048	V7-9W2 Series

Actuator Type	Lever, Straight	Round (Pin Plunger), Lever, Straight
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	15 A	15 A
Differential Travel	1.4 mm	0.25 - 1.4 mm
Differential Travel	0.055 in	0.01 - 0.055 in
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	90 gf	90 - 300 gf
Operating Position	15.3 mm	14.7 - 15.3 mm
Operating Position	0.602 "	0.579 - 0.602 in
Operating Temperature [Max]	177 °C	177 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.125 in	0.05 - 0.125 in
Overtravel	3.2 mm	1.27 - 3.2 mm
Pretravel	6.35 mm	1.2 - 6.35 mm
Pretravel	0.25 in	0.047 - 0.25 in
Release Force	4 gf	4 - 25 gf
Switch Function	Off-Mom	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH SNAP ACT SPST-NO 15A 125V

Part	Release Force	Pretravel	Pretravel	Actuator Type	Mechanical Life	Operating Position	Operating Position	Differential Travel	Differential Travel	Switch Function	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Current Rating (Amps)	Overtravel	Overtravel	Voltage Rating - AC	Mounting Type	Electrical Life	Termination Style
Honeywell Sensing and Productivity Solutions V7-9W2AE9	25 gf	0.047 in	1.2 mm	Round (Pin Plunger)	10000000 Cycles	0.579 in	14.7 mm	0.25 mm	0.01 in	Off-Mom	SPST-NO	-40 °C	177 °C	300 gf	15 A	1.27 mm	0.05 in	125 V	Chassis Mount	100000 Cycles	Quick Connect - 0.250" (6.3mm)
Honeywell Sensing and Productivity Solutions V7-9W2AE9-048	4 gf	0.25 in	6.35 mm	Lever, Straight	10000000 Cycles	0.602 "	15.3 mm	1.4 mm	0.055 in	Off-Mom	SPST-NO	-40 °C	177 °C	90 gf	15 A	3.2 mm	0.125 in	125 V	Chassis Mount	100000 Cycles	Quick Connect - 0.250" (6.3mm)
