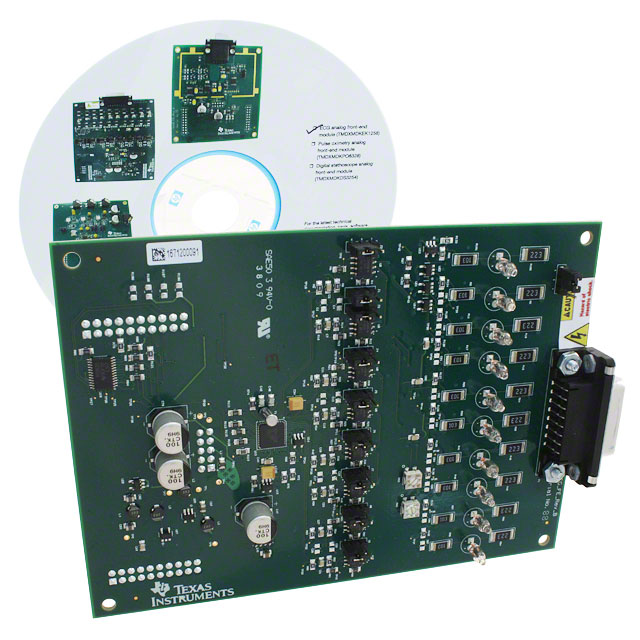

TMDXMDKEK1258
ObsoleteTexas Instruments
MOD ECG AFE FOR C5505 ECG MD KIT
TMDXMDKEK1258
ObsoleteTexas Instruments
MOD ECG AFE FOR C5505 ECG MD KIT
Description
General part information
TMDX Series
TMDXEVM5505, ADS1258 - Medical, Electrocardiogram (EKG/ECG) Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TMDXMDKEK1258 |
|---|---|
| Contents | Board |
| Embedded | No |
| Interface | I2C, Serial, SPI |
| Sensor Type | Electrocardiogram (EKG/ECG), Medical |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TMDXEVM5505, ADS1258 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
