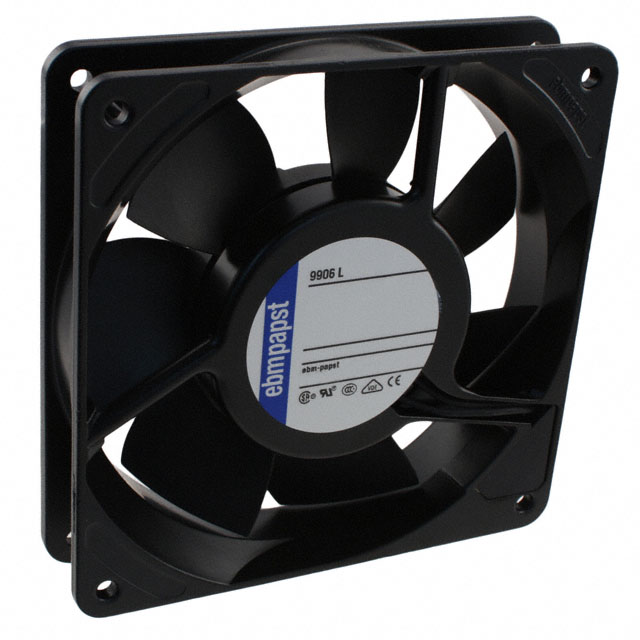

9906L
Obsoleteebm-papst Inc.
AC FAN AXIAL BALL BEARING 115V 58.9CFM 34DB 119 X 119 X 25.4MM LOW SPEED
Deep-Dive with AI
Search across all available documentation for this part.
9906L
Obsoleteebm-papst Inc.
AC FAN AXIAL BALL BEARING 115V 58.9CFM 34DB 119 X 119 X 25.4MM LOW SPEED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9906L |
|---|---|
| Air Flow | 58.9 CFM |
| Air Flow | 1.65 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 62500 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 34 dB(A) |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 8 W |
| RPM | 2100 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 0.716 lb |
| Weight | 324.77 g |
| Width [y] | 25 mm |
9906 Series
| Part | Material - Frame | RPM | Voltage - Rated | Noise | Power (Watts) | Termination | Air Flow | Air Flow | Fan Type | Size / Dimension [y] | Size / Dimension [x] | Material - Blade | Bearing Type | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Approval Agency | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | Metal | 2100 RPM | 115 VAC | 34 dB(A) | 8 W | 2 Terminals | 58.9 CFM | 1.65 mł/min | Tubeaxial | 119 mm | 119 mm | Metal | Ball | 62500 Hrs | 80 °C | -40 °C | -40 °C | 80 C | 0.716 lb | 324.77 g | CE CSA UL VDE | 25 mm |
ebm-papst Inc. | Metal | 2450 RPM | 115 VAC | 37 dB | 8 W | 2 Terminals | 65.3 CFM | 1.83 m³/min | Tubeaxial | 119 mm | 119 mm | Metal | Ball | 62500 Hrs | 80 °C | -40 °C | -40 °C | 80 C | 0.716 lb | 324.77 g | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
9906 Series
Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 58.9 CFM (1.65m³/min) 2 Terminals
