917697-1

Active

TE Connectivity AMP Connectors

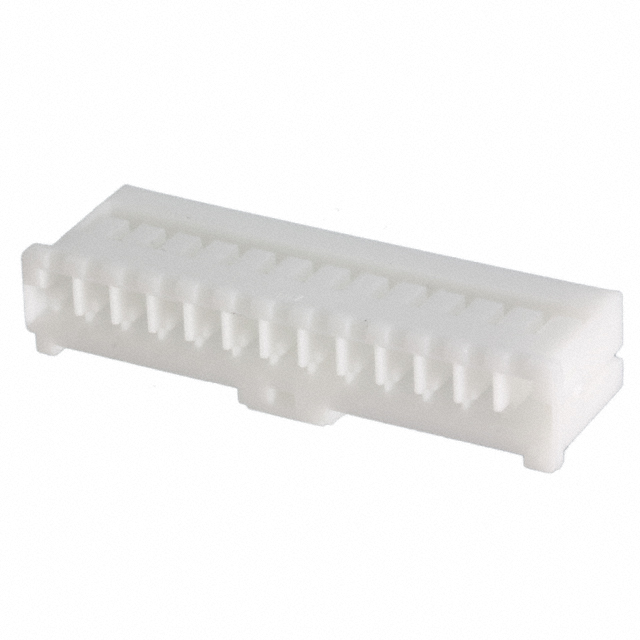

CONN PLUG HSG 13POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 13POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG HSG 13POS 2.50MM

Part	Contact Termination	Pitch [x]	Pitch [x]	Contact Type	Color	Number of Positions	Mounting Type	Number of Rows	Insulation Material	Note	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 917697-1	Crimp	0.098 in	2.5 mm	Female Socket	Natural	13	Free Hanging (In-Line)	1	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Plug	Locking Ramp	-30 ░C	105 ░C
TE Connectivity AMP Connectors 5-917697-1	Crimp	0.098 in	2.5 mm	Female Socket	Natural	13	Free Hanging (In-Line)	1	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Plug	Locking Ramp	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
