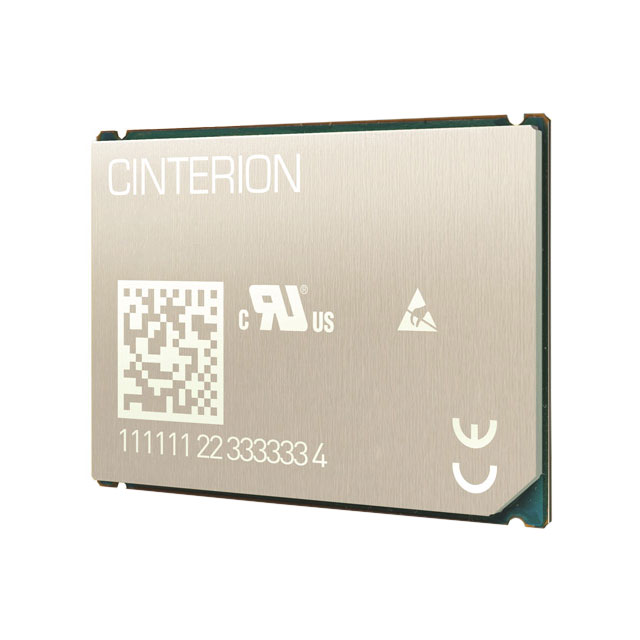

EHS5-E REL.4

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MODULE CELL SMD

Part	Mounting Type	Power - Output	RF Family/Standard	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Memory Size [custom]	Memory Size [custom]	Utilized IC / Part	Frequency	Modulation	Current - Transmitting [Min]	Current - Transmitting [Max]	Package / Case	Data Rate
Telit Cinterion EHS5-E REL.4	Surface Mount	33 dBm	Cellular	ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB	3.3 V	4.5 V	EDGE, GPRS, GSM, HSPA+, UMTS	90 °C	-40 °C	Antenna Not Included	10 MB	10 MB	Intel XMM 6260	900 MHz, 1800 MHz, 2100 MHz	16-QAM	30 mA	710 mA	106-BLGA Module	7.2 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular EDGE, GPRS, GSM, HSPA+, UMTS Transceiver Module 900MHz, 1.8GHz, 2.1GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
