LSA61-D1D1-S18

Active

ConductRF

CBL ASSY 2.92MM PLUG TO PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA61-D1D1-S18

Active

ConductRF

CBL ASSY 2.92MM PLUG TO PLUG 18"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 135.24
		5	$ 128.12
		10	$ 121.72
		25	$ 110.65
		50	$ 101.43
		100	$ 97.38
		250	$ 93.63
		500	$ 90.16
		1000	$ 86.94

Description

General part information

LSA61 Series

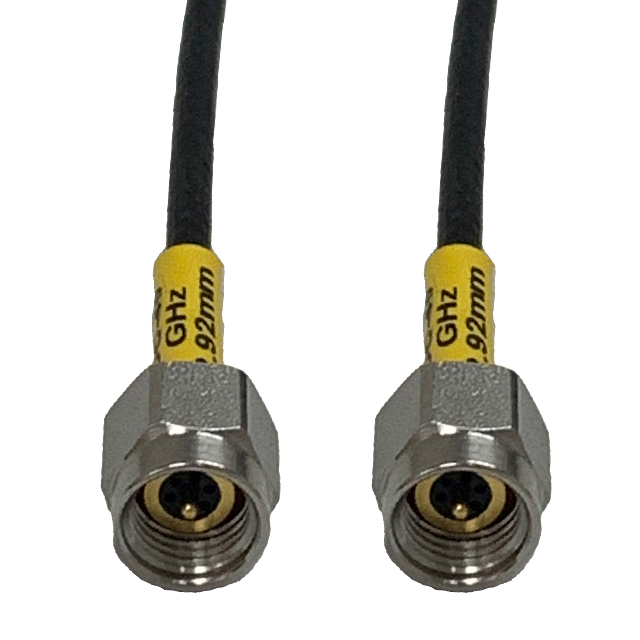

Cable Assembly Coaxial 2.92mm to 2.92mm 2.18mm OD Coaxial Cable 18.00" (457.20mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSA61-D1D1-S18	LSA61 Series

1st Connector	2.92mm Plug	2.92mm Plug, 2.4mm Plug, 1.85mm Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	2.92 mm	2.92 mm
2nd Connector	-	2.4mm Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	2.18mm OD Coaxial Cable	2.18mm OD Coaxial Cable
Color	Black	Black
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	40 GHz	40 - 67 GHz
Length	-	152.4 - 304.8 mm
Length	-	6 - 12 in
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	457.2 mm
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Impedance	50 Ohms	50 Ohms
Style [Max]	2.92 mm	1.85 - 2.92 mm
Style [Min]	2.92 mm	1.85 - 2.92 mm

LSA61 Series

CBL ASSY 2.92MM PLUG TO PLUG 6"

Part	Color	2nd Connector	Frequency - Max [Max]	Connector Impedance	2nd Contact Gender	1st Connector	Length	Length	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	2nd Connector Mounting Type	Style [Min]	Style [Max]	Features	Overall Impedance	1st Contact Gender	2nd Connector	Length [x]	Length [x]
ConductRF LSA61-D1D1-S06	Black	2.92 mm	40 GHz	50 Ohms	Male	2.92mm Plug	152.4 mm	6 in	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Shielded	50 Ohms	Male
ConductRF LSA61-C1C1-S06	Black		50 GHz	50 Ohms	Male	2.4mm Plug	152.4 mm	6 in	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.4 mm	2.4 mm	Shielded	50 Ohms	Male	2.4mm Plug
ConductRF LSA61-D1D1-S18	Black	2.92 mm	40 GHz	50 Ohms	Male	2.92mm Plug			Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Shielded	50 Ohms	Male		457.2 mm	457.2 mm
ConductRF LSA61-B1B1-S18	Black		67 GHz	50 Ohms	Male	1.85mm Plug			Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	1.85 mm	1.85 mm	Shielded	50 Ohms	Male		457.2 mm	457.2 mm
ConductRF LSA61-B1B1-S06	Black		67 GHz	50 Ohms	Male	1.85mm Plug	152.4 mm	6 in	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	1.85 mm	1.85 mm	Shielded	50 Ohms	Male
ConductRF LSA61-D1D1-S12	Black	2.92 mm	40 GHz	50 Ohms	Male	2.92mm Plug	304.8 mm	12 "	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Shielded	50 Ohms	Male
ConductRF LSA61-C1C1-S18	Black		50 GHz	50 Ohms	Male	2.4mm Plug			Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.4 mm	2.4 mm	Shielded	50 Ohms	Male	2.4mm Plug	457.2 mm	457.2 mm
ConductRF LSA61-C1C1-S12	Black		50 GHz	50 Ohms	Male	2.4mm Plug	304.8 mm	12 "	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	2.4 mm	2.4 mm	Shielded	50 Ohms	Male	2.4mm Plug
ConductRF LSA61-B1B1-S12	Black		67 GHz	50 Ohms	Male	1.85mm Plug	304.8 mm	12 "	Free Hanging (In-Line)	-65 ░C	105 ░C	2.18mm OD Coaxial Cable	Free Hanging (In-Line)	1.85 mm	1.85 mm	Shielded	50 Ohms	Male
