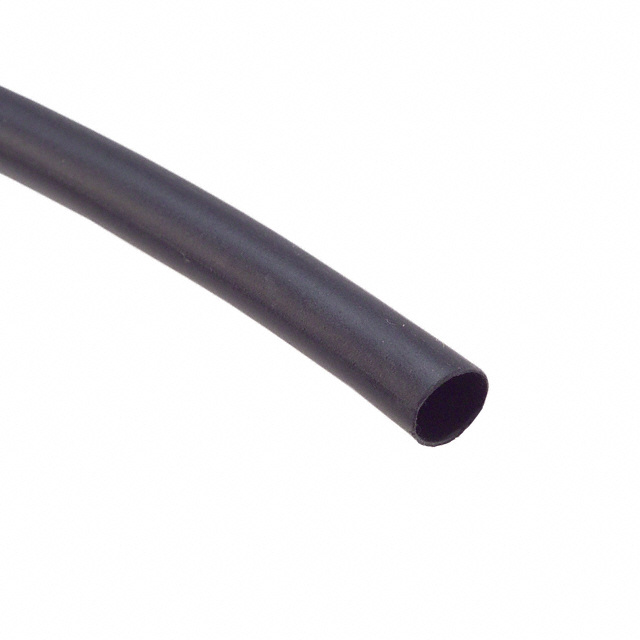

SFTW203 1/4" BL SPL

Active

HEATSHRNK 1/4"X1.5" BLK 50=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

SFTW203 1/4" BL SPL

Active

HEATSHRNK 1/4"X1.5" BLK 50=50PC

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFTW203 1/4" BL SPL	SFTW203 Series

Color	Black	Black
Features	Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing	Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing
Inner Diameter - Recovered	0.079 in	0.079 - 0.512 in
Inner Diameter - Recovered	2.01 mm	2.01 - 13 mm
Inner Diameter - Recovered	-	0.02 - 0.315 in
Inner Diameter - Recovered	-	0.51 - 8 mm
Inner Diameter - Supplied [diameter]	0.236 in	0.059 - 0.945 in
Inner Diameter - Supplied [diameter]	5.99 mm	1.5 - 24 mm
Length	152.4 mm, 38.1 mm, 76.2 mm, 1.52 m, 7.6 m	1.52 - 304.8 m
Length	6 ", 1.5 ", 3 "	0.75 - 6 "
Length	0.5 '	0.5 '
Length	0.125 ', 0.25 ft, 5 ', 25 ft	0.062 - 1000 '
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length [x]	61 m, 101.6 mm	1.22 - 101.6 mm
Length [x]	200 ft, 0.333 ft	0.333 - 200 ft
Length [x]	4 "	4 "
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.66 mm	0.46 - 1.14 mm
Recovered Wall Thickness	0.026 "	0.018 - 0.045 in
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Spool Size	61 m	61 - 304.8 m
Spool Size	200 '	200 - 1000 '
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

SFTW203 Series

HEATSHRINK SFTW203 3/8" BLK FOOT

Part	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Type	Length	Length	Shelf Life Start	Recovered Wall Thickness	Recovered Wall Thickness	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Color	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Spool Size	Spool Size	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Length [x]	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered
3M SFTW203 3/8" BL SPL	120 Months	0.354 in	8.99 mm	1.52 m, 7.6 m, 15.2 m, 50.8 mm, 76.2 mm, 152.4 mm	0.167 ', 0.25 ft, 5 ', 25 ft, 50 ft	Tubing, Flexible	2 ", 3 ", 6 "	0.5 '	Date of Manufacture	0.76 mm	0.03 "	Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C	0.118 in	2.99 mm
3M SFTW203 1/16" BL SPL	120 Months	0.059 in	1.5 mm	1.52 m, 7.6 m, 15.2 m, 25.4 mm, 50.8 mm, 152.4 mm, 304.8 m	0.083 ft, 0.167 ', 5 ', 25 ft, 50 ft, 1000 ft	Tubing, Flexible	1 in, 2 ", 6 "	0.5 '	Date of Manufacture	0.46 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	304.8 m	1000 ft	135 °C	-55 °C	0.02 in	0.51 mm	0.018 in	4 "	0.333 ft	101.6 mm
3M SFTW203 1/8" BL SPL	120 Months	0.118 in	3 mm	1.52 m, 7.6 m, 15.2 m, 25.4 mm	0.083 ft, 5 ', 25 ft, 50 ft	Tubing, Flexible	1 in		Date of Manufacture	0.56 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	152.4 m	500 '	135 °C	-55 °C	0.039 in	0.99 mm	0.022 "	4 "	0.333 ft	101.6 mm
3M SFTW203 1/4" BL SPL	120 Months	0.236 in	5.99 mm	1.52 m, 7.6 m, 38.1 mm, 76.2 mm, 152.4 mm	0.125 ', 0.25 ft, 5 ', 25 ft	Tubing, Flexible	1.5 ", 3 ", 6 "	0.5 '	Date of Manufacture	0.66 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C			0.026 "	4 "	0.333 ft, 200 ft	61 m, 101.6 mm	0.079 in	2.01 mm
3M SFTW-203-1 1/2-BLACK	120 Months					Tubing, Flexible			Date of Manufacture	1.14 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C			0.045 in		100 ft	30.5 m	0.512 in	13 mm
3M SFTW-203-1-48-BLACK	120 Months	0.945 "	24 mm			Tubing, Flexible			Date of Manufacture	0.99 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C	0.315 in	8 mm	0.039 in		4 ft	1.22 m
3M SFTW-203-1/4-48-BLACK	120 Months	0.236 in	5.99 mm			Tubing, Flexible			Date of Manufacture	0.66 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C			0.026 "		4 ft	1.22 m	0.079 in	2.01 mm
3M SFTW-203-1/8-48-BLACK	120 Months	0.118 in	3 mm			Tubing, Flexible			Date of Manufacture	0.56 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C	0.039 in	0.99 mm	0.022 "		4 ft	1.22 m
3M SFTW203 1/2" BL SPL	120 Months	0.472 in	11.99 mm	15.2 m, 19.05 mm, 25.4 mm	0.062 ', 0.083 ft, 50 ft	Tubing, Flexible	0.75 ", 1 in		Date of Manufacture	0.76 mm	0.03 "	Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C	0.157 in	3.99 mm		4 "	0.333 ft, 200 ft	61 m, 101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.78
		5	$ 5.55
		10	$ 4.28
		25	$ 3.93
		50	$ 0.20
		50	$ 3.70
		50	$ 0.11
		50	$ 0.06
		50	$ 0.18
		50	$ 0.32
		100	$ 3.47
		100	$ 0.18
		100	$ 0.17
		100	$ 0.29
		100	$ 0.10
		100	$ 0.05
		150	$ 0.16
		150	$ 0.05
		150	$ 0.28
		150	$ 0.09
		250	$ 0.15
		250	$ 0.26
		250	$ 0.09
		250	$ 0.05
		250	$ 0.16
		350	$ 0.08
		350	$ 0.14
		350	$ 0.25
		350	$ 0.04
		500	$ 0.04
		500	$ 0.24
		500	$ 0.14
		500	$ 0.15
		500	$ 0.08
		1250	$ 0.12
		1250	$ 0.21
		1250	$ 0.15
		1250	$ 0.07
		1250	$ 0.04
		2500	$ 0.21
		2500	$ 0.04
		2500	$ 0.07
		2500	$ 0.11
		5000	$ 0.03
		5000	$ 0.11
		5000	$ 0.06
	Digi-Spool®, Continuous Spool	1	$ 2.06
		2	$ 1.90
		3	$ 1.81
		5	$ 1.70
		7	$ 1.63
		10	$ 1.56
		25	$ 1.40
		50	$ 1.29
		100	$ 1.18
	Spool	1	$ 21.98
		5	$ 18.51
		10	$ 16.77
		25	$ 15.61
		50	$ 15.04
		100	$ 14.69
		200	$ 0.72
		400	$ 0.66
		600	$ 0.63
		1000	$ 0.61

Description

General part information

SFTW203 Series

Heat Shrink Tubing, Flexible 0.236" (5.99mm) 3 to 1 Black 0.125' (38.10mm, 1.50")
