SFTW-203-1 1/2-BLACK

Active

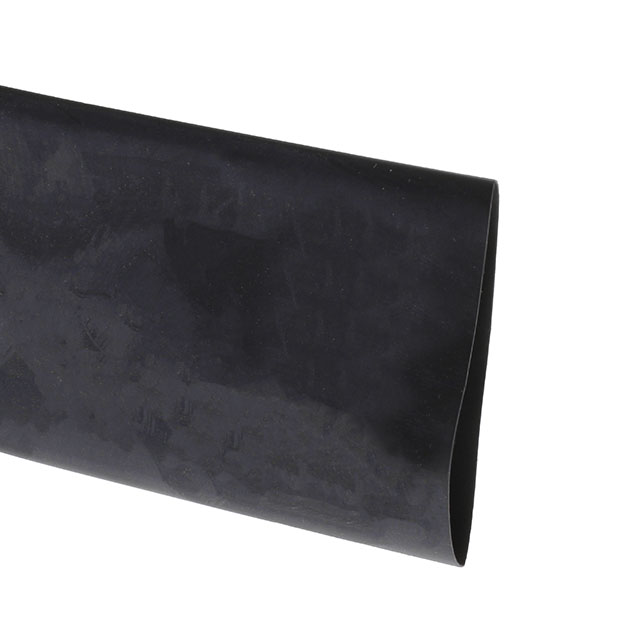

HEATSHRINK 1 1/2 39MM BLACK 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFTW-203 Test Report Datasheet

SFTW-203-1 1/2-BLACK

Active

HEATSHRINK 1 1/2 39MM BLACK 100'

Deep-Dive with AI

DocumentsSFTW-203 Test Report Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 309.38

Description

General part information

SFTW203 Series

Heat Shrink Tubing, Flexible 1.535" (38.99mm) 3 to 1 Black 100.0' (30.5m)

Documents

Technical documentation and resources

SFTW-203 Test Report

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFTW-203-1 1/2-BLACK	SFTW203 Series

Color	Black	Black
Features	Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing	Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing
Inner Diameter - Recovered	13 mm	2.01 - 13 mm
Inner Diameter - Recovered	0.512 in	0.079 - 0.512 in
Inner Diameter - Recovered	-	0.02 - 0.315 in
Inner Diameter - Recovered	-	0.51 - 8 mm
Inner Diameter - Supplied	-	0.059 - 0.945 in
Inner Diameter - Supplied	-	1.5 - 24 mm
Length	-	1.52 - 304.8 m
Length	-	0.062 - 1000 '
Length	-	0.75 - 6 "
Length	-	0.5 '
Length	-	Enter Number of Feet in Order Quantity
Length	-	4 "
Length [x]	30.5 m	1.22 - 101.6 mm
Length [x]	100 ft	0.333 - 200 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.045 in	0.018 - 0.045 in
Recovered Wall Thickness	1.14 mm	0.46 - 1.14 mm
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Spool Size	-	61 - 304.8 m
Spool Size	-	200 - 1000 '
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

SFTW203 Series

HEATSHRINK SFTW203 3/8" BLK FOOT

Part	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Type	Length	Length	Shelf Life Start	Recovered Wall Thickness	Recovered Wall Thickness	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Color	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Spool Size	Spool Size	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Length [x]	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered
3M SFTW203 3/8" BL SPL	120 Months	0.354 in	8.99 mm	1.52 m, 7.6 m, 15.2 m, 50.8 mm, 76.2 mm, 152.4 mm	0.167 ', 0.25 ft, 5 ', 25 ft, 50 ft	Tubing, Flexible	2 ", 3 ", 6 "	0.5 '	Date of Manufacture	0.76 mm	0.03 "	Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C	0.118 in	2.99 mm
3M SFTW203 1/16" BL SPL	120 Months	0.059 in	1.5 mm	1.52 m, 7.6 m, 15.2 m, 25.4 mm, 50.8 mm, 152.4 mm, 304.8 m	0.083 ft, 0.167 ', 5 ', 25 ft, 50 ft, 1000 ft	Tubing, Flexible	1 in, 2 ", 6 "	0.5 '	Date of Manufacture	0.46 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	304.8 m	1000 ft	135 °C	-55 °C	0.02 in	0.51 mm	0.018 in	4 "	0.333 ft	101.6 mm
3M SFTW203 1/8" BL SPL	120 Months	0.118 in	3 mm	1.52 m, 7.6 m, 15.2 m, 25.4 mm	0.083 ft, 5 ', 25 ft, 50 ft	Tubing, Flexible	1 in		Date of Manufacture	0.56 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	152.4 m	500 '	135 °C	-55 °C	0.039 in	0.99 mm	0.022 "	4 "	0.333 ft	101.6 mm
3M SFTW203 1/4" BL SPL	120 Months	0.236 in	5.99 mm	1.52 m, 7.6 m, 38.1 mm, 76.2 mm, 152.4 mm	0.125 ', 0.25 ft, 5 ', 25 ft	Tubing, Flexible	1.5 ", 3 ", 6 "	0.5 '	Date of Manufacture	0.66 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C			0.026 "	4 "	0.333 ft, 200 ft	61 m, 101.6 mm	0.079 in	2.01 mm
3M SFTW-203-1 1/2-BLACK	120 Months					Tubing, Flexible			Date of Manufacture	1.14 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C			0.045 in		100 ft	30.5 m	0.512 in	13 mm
3M SFTW-203-1-48-BLACK	120 Months	0.945 "	24 mm			Tubing, Flexible			Date of Manufacture	0.99 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C	0.315 in	8 mm	0.039 in		4 ft	1.22 m
3M SFTW-203-1/4-48-BLACK	120 Months	0.236 in	5.99 mm			Tubing, Flexible			Date of Manufacture	0.66 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C			0.026 "		4 ft	1.22 m	0.079 in	2.01 mm
3M SFTW-203-1/8-48-BLACK	120 Months	0.118 in	3 mm			Tubing, Flexible			Date of Manufacture	0.56 mm		Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black		1	3	100 °C			135 °C	-55 °C	0.039 in	0.99 mm	0.022 "		4 ft	1.22 m
3M SFTW203 1/2" BL SPL	120 Months	0.472 in	11.99 mm	15.2 m, 19.05 mm, 25.4 mm	0.062 ', 0.083 ft, 50 ft	Tubing, Flexible	0.75 ", 1 in		Date of Manufacture	0.76 mm	0.03 "	Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing	27 °C, 80 °F	10 °C	Polyolefin (PO)	Black	Enter Number of Feet in Order Quantity	1	3	100 °C	61 m	200 '	135 °C	-55 °C	0.157 in	3.99 mm		4 "	0.333 ft, 200 ft	61 m, 101.6 mm
