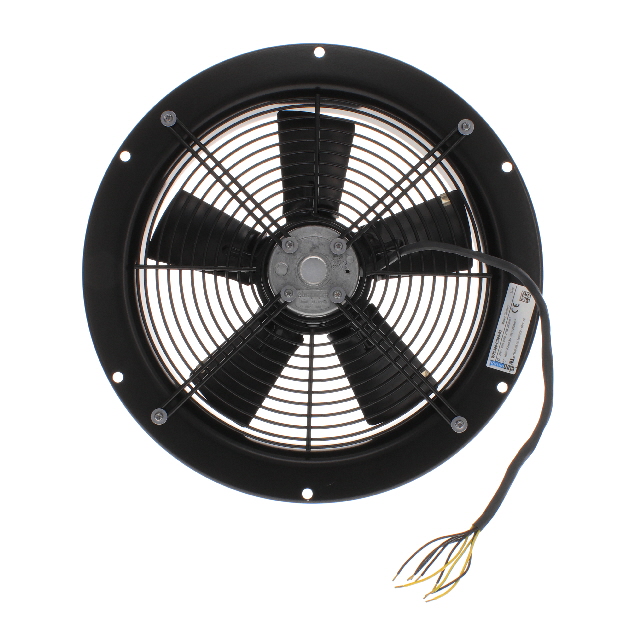

Specification	W2D300-CD04-53

Approval Agency	CE, UL, CSA
Bearing Type	Ball
Current Rating (Maximum)	0.66 A
Current Rating (Minimum)	0.38 A
Fan Type	3 Phase, Tubeaxial
Features	Thermal Overload Protector (TOP), Electronic Commutation (EC), Dual Voltage
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature (Max)	95 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	275 W
RPM	2800 RPM
Size / Dimension Diameter	397 mm
Size / Dimension Shape	Round
Termination	9 Wire Leads
Termination Leads Count	9
Termination Type	Wire Leads
Voltage - Rated (Option 1)	266 VAC
Voltage - Rated (Option 2)	460 VAC
Weight	10.6 lbs
Width	101.5 mm

W2D300 Series

AC Fans AC Axial Fan

Part	Bearing Type	Size / Dimension Shape	Size / Dimension Diameter	Maximum RPM	Minimum RPM	Fan Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated (Option 1)	Voltage - Rated (Option 2)	Static Pressure	Features	Approval Agency	Termination Type	Termination	Termination Leads Count	Width	Power (Watts) Options	Ingress Protection	RPM	Power (Watts)	Air Flow	Current Rating (Minimum)	Current Rating (Maximum)	Material - Blade	Material - Frame	Weight
ebm-papst Inc. W2D300-CP02-48	Ball	Round	397 mm	2900 RPM	2750 RPM	3 Phase Tubeaxial	-13 °F	113 °F	400 VAC	460 VAC	0.502 in H2O	Dual Voltage Thermal Overload Protector (TOP)	CE CSA EAC UL	Wire Leads with Splice Terminals	6 Wire Leads with Splice Terminals	6	104.8 mm	300W 340W	IP44
ebm-papst Inc. W2D300-CP02-31	Ball	Round	397 mm			3 Phase Tubeaxial	-13 °F	104 °F	230 VAC	400 VAC	0.502 in H2O	Dual Voltage	CCC CE EAC	Wire Leads with Splice Terminals	7 Wire Leads with Splice Terminals	7	114 mm		IP44	2750 RPM	300 W	1301.7 CFM	0.48 A	0.84 A	Steel	Steel
ebm-papst Inc. W2D300-CD04-53	Ball	Round	397 mm			3 Phase Tubeaxial	-13 °F	95 °F	266 VAC	460 VAC		Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)	CE CSA UL	Wire Leads	9 Wire Leads	9	101.5 mm		IP44	2800 RPM	275 W		0.38 A	0.66 A	Steel		10.6 lbs
