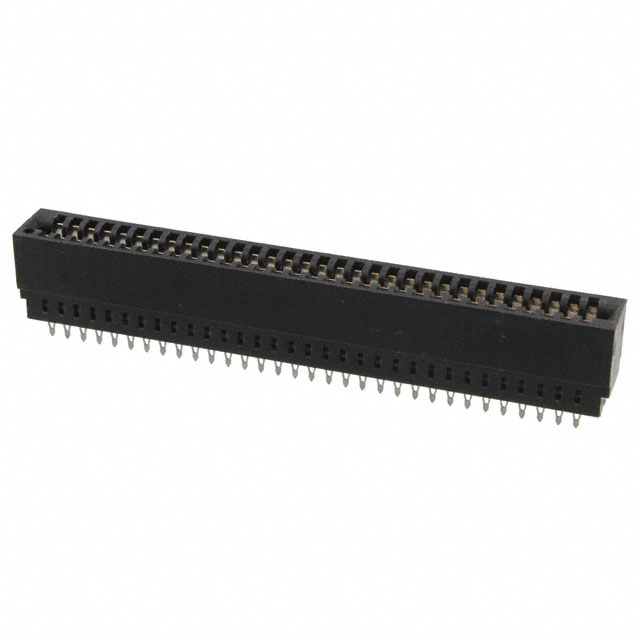

3-5147490-2
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-5147490-2
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-5147490-2 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Material - Insulation | Polyester, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 500 | $ 8.17 | |
Description
General part information
AMP ECONOMATE Series
64 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
