C2425A.41.10

Active

Prysmian Group

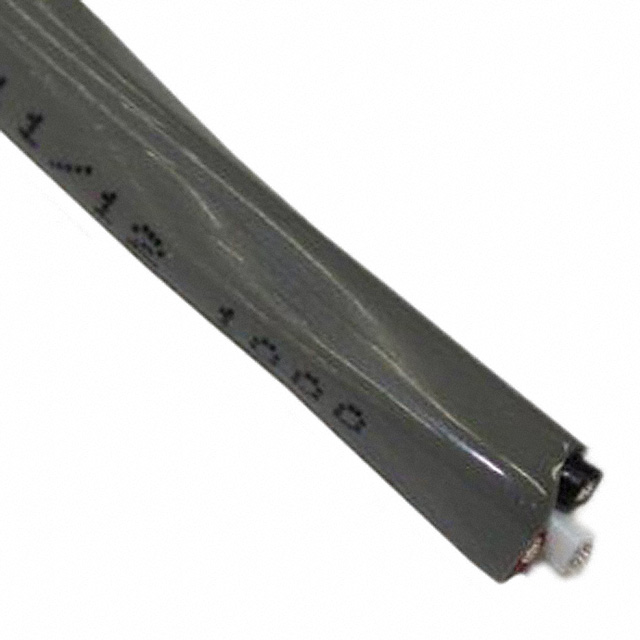

CABLE 4COND 16AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 16AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2425A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	7.77 mm
Jacket (Insulation) Diameter [diameter]	0.306 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Voltage	Jacket Color	Usage	Jacket (Insulation) Material	Cable Type	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Number of Conductors
Prysmian Group C2425A.41.10	300 V	Gray	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	ASTM B-33	19	0.0117 in	Poly-Vinyl Chloride (PVC)	7.77 mm	0.306 in	16 AWG	1000 ft	304.8 m	30.5 m	100 ft	-20 C	80 C	Copper Annealed Tinned	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 16 AWG 1000.0' (304.8m)
