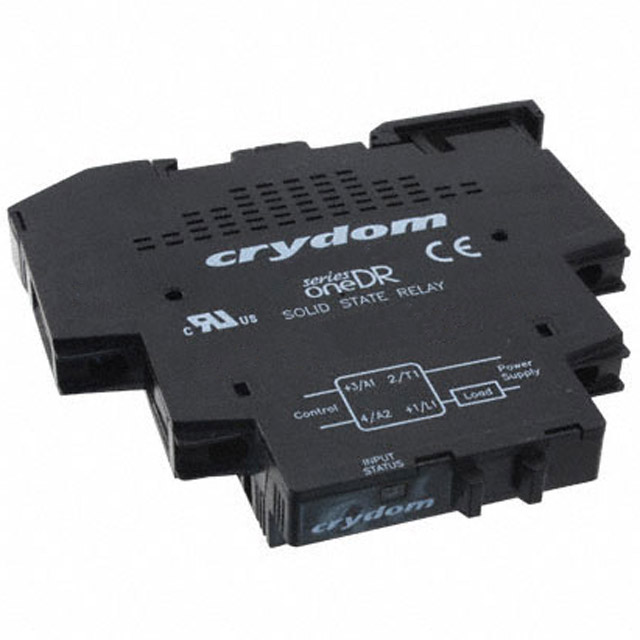

DR10D03
ActiveSensata-Crydom
SSR RELAY SPST-NO 3A 1-100V
DR10D03
ActiveSensata-Crydom
SSR RELAY SPST-NO 3A 1-100V
Description
General part information
DR10D03 Series
Solid State SPST-NO (1 Form A) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | DR10D03 |
|---|---|
| Approval Agency | cULus, CE |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 3 A |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input (DC) Maximum | 32 VDC |
| Voltage - Input (DC) Minimum | 4 VDC |
| Voltage - Load (Max) | 100 V |
| Voltage - Load (Min) | 1 V |
