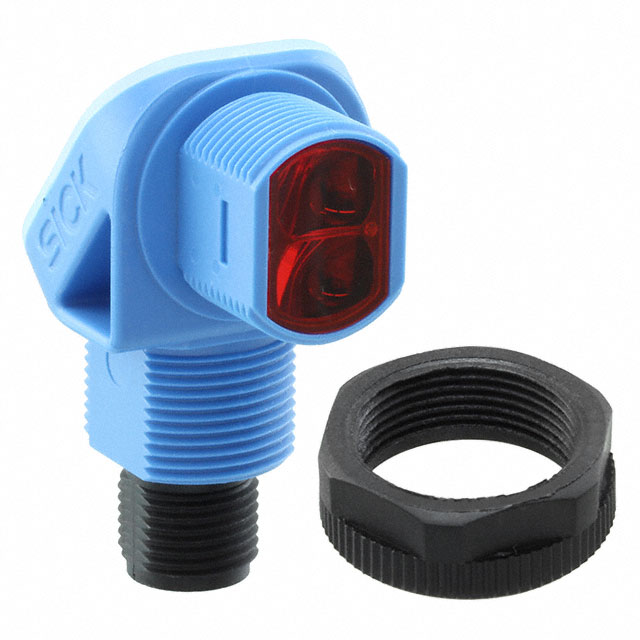

ET3-P4228

Obsolete

SICK, Inc.

SENSOR 100MM PNP LO M12 100 MM

Search across all available documentation for this part.

Obsolete

SICK, Inc.

SENSOR 100MM PNP LO M12 100 MM

Technical Specifications

Parameters and characteristics for this part

Specification	ET3-P4228

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Sensing Distance [Max]	100 mm
Sensing Distance [Max]	3.937 "
Sensing Distance [Min]	1 mm
Sensing Distance [Min]	0.039 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

SENSOR 100MM PNP LO M12 100 MM

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]
SICK, Inc. ET3-P4228	IP67	50 °C	-25 °C	PNP - Dark-ON/Light-ON - Selectable	4POS, Connector, M12	30 VDC	10 VDC	Infrared	100 mm	1 mm	3.937 "	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optical Sensor 0.039" ~ 3.937" (1mm ~ 100mm) PNP - Dark-ON/Light-ON - Selectable

Technical documentation and resources
