TPS6521905RHBR
ActiveUSER-PROGRAMMABLE POWER MANAGEMENT IC (PMIC) WITH THREE STEP-DOWN DC/DC CONVERTERS AND FOUR LDOS
Deep-Dive with AI
Search across all available documentation for this part.
TPS6521905RHBR
ActiveUSER-PROGRAMMABLE POWER MANAGEMENT IC (PMIC) WITH THREE STEP-DOWN DC/DC CONVERTERS AND FOUR LDOS
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS6521905RHBR | TPS6521905 Series |
|---|---|---|
| Frequency - Switching | 2.3 MHz | 2.3 MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 7 | 7 |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

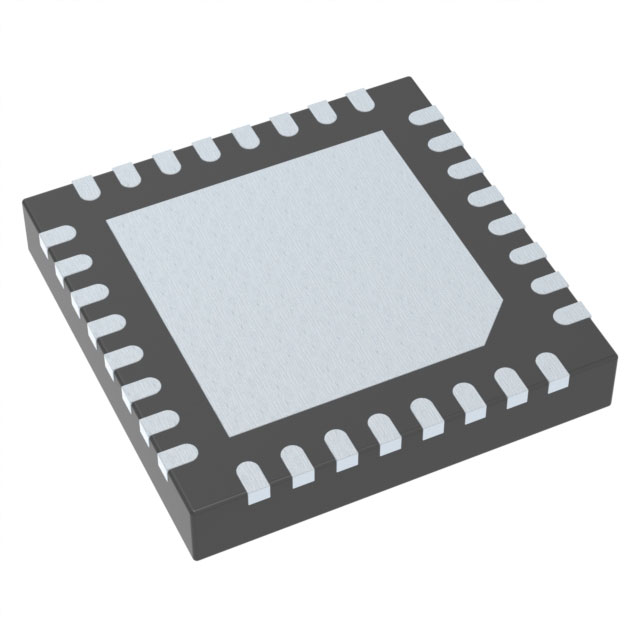

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) | 32-VQFN (4x4), 32-VQFN (5x5) |
| Topology | Linear (LDO) (4), Step-Down (Buck) Synchronous (3) | Linear (LDO) (4), Step-Down (Buck) Synchronous (3) |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.5 V | 2.5 V |
| Voltage/Current - Output 1 | 3.5 A | 3.5 A |
| Voltage/Current - Output 1 [Max] | 3.4 V | 3.4 V |
| Voltage/Current - Output 1 [Min] | 0.6 V | 0.6 V |
| Voltage/Current - Output 2 | 2 A | 2 A |
| Voltage/Current - Output 2 [Max] | 3.4 V | 3.4 V |
| Voltage/Current - Output 2 [Min] | 0.6 V | 0.6 V |
| Voltage/Current - Output 3 | 2 A | 2 A |
| Voltage/Current - Output 3 [Max] | 3.4 V | 3.4 V |
| Voltage/Current - Output 3 [Min] | 0.6 V | 0.6 V |
| w/LED Driver | False | False |
| w/Sequencer | True | True |
| w/Supervisor | False | False |
TPS6521905 Series
User-programmable power management IC (PMIC) with three step-down DC/DC converters and four LDOs
| Part | Frequency - Switching | Package / Case | Voltage/Current - Output 3 [Max] | Voltage/Current - Output 3 | Voltage/Current - Output 3 [Min] | Voltage/Current - Output 2 [Max] | Voltage/Current - Output 2 | Voltage/Current - Output 2 [Min] | w/Sequencer | Voltage - Supply [Min] | Voltage - Supply [Max] | Voltage/Current - Output 1 [Min] | Voltage/Current - Output 1 [Max] | Voltage/Current - Output 1 | w/Supervisor | Mounting Type | w/LED Driver | Topology | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS6521905RSMR | 2.3 MHz | 32-VFQFN Exposed Pad | 3.4 V | 2 A | 0.6 V | 3.4 V | 2 A | 0.6 V | 2.5 V | 5.5 V | 0.6 V | 3.4 V | 3.5 A | Surface Mount | Linear (LDO) (4), Step-Down (Buck) Synchronous (3) | 7 | 105 °C | -40 °C | 32-VQFN (4x4) | |||
Texas Instruments TPS6521905RHBR | 2.3 MHz | 32-VFQFN Exposed Pad | 3.4 V | 2 A | 0.6 V | 3.4 V | 2 A | 0.6 V | 2.5 V | 5.5 V | 0.6 V | 3.4 V | 3.5 A | Surface Mount | Linear (LDO) (4), Step-Down (Buck) Synchronous (3) | 7 | 105 °C | -40 °C | 32-VQFN (5x5) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.62 | |||
| 25 | $ 2.47 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.62 | |||
| 25 | $ 2.47 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| Tape & Reel (TR) | 3000 | $ 1.34 | ||
| 6000 | $ 1.29 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.19 | |
| 100 | $ 1.81 | |||
| 250 | $ 1.30 | |||
| 1000 | $ 0.98 | |||
Description
General part information
TPS6521905 Series
The TPS6521905 is a Power Management IC (PMIC) designed to supply a wide range of SoCs in both portable and stationary applications. The device is characterized across an ambient temperature range of -40°C to +105°C, making the PMIC an excellent choice for various industrial applications. The device includes three synchronous stepdown DC-DC converters and four linear regulators.
The DC-DC converters are capable of 1x 3.5A and 2x 2 A. The converters require a small 470nH inductor, 4.7µF input capacitance, and a minimum 10µF output capacitance per rail depending on the switching mode configuration.
Two of the LDOs support output currents of 400mA at an output voltage range of 0.6V to 3.4V. These LDOs support bypass mode, acting as a load-switch, and allow voltage-changes during operation. The other two LDOs support output currents of 300mA at an output voltage range of 1.2V to 3.3V. These LDOs also support load-switch mode.
