AX250-1PQ208M
ActiveMicrochip Technology

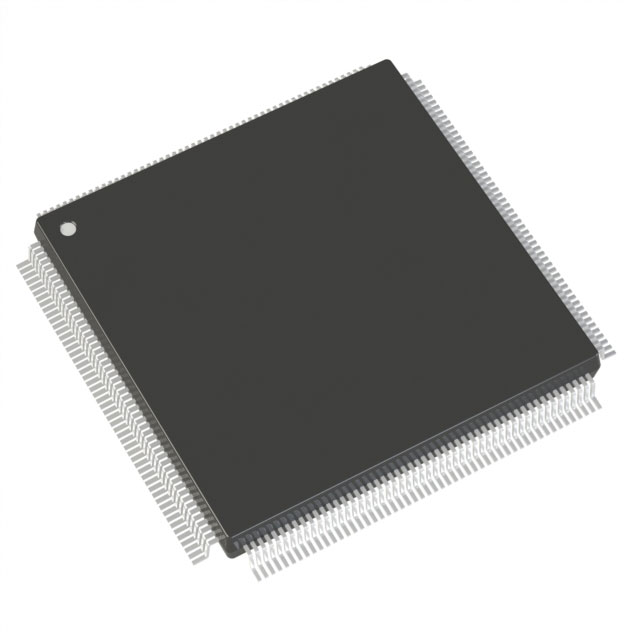

IC FPGA 115 I/O 208QFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AX250-1PQ208M
ActiveMicrochip Technology
IC FPGA 115 I/O 208QFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AX250-1PQ208M | AX250 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Gates | 250000 | 250000 |
| Number of I/O | 115 | 115 - 248 |
| Number of LABs/CLBs [custom] | 4224 | 4224 |
| Operating Temperature [Max] | 125 °C | 70 - 125 °C |
| Operating Temperature [Min] | -55 C | -55 - 0 °C |
| Package / Case | 208-BFQFP | 484-BGA, 256-LBGA, 208-BFCQFP with Tie Bar, 352-BFCQFP with Tie Bar, 208-BFQFP |
| Supplier Device Package | 208-PQFP (28x28) | 484-FPBGA (23x23), 256-FPBGA (17x17), 208-CQFP (75x75), 352-CQFP (75x75), 208-PQFP (28x28) |
| Total RAM Bits | 55296 | 55296 |
| Voltage - Supply [Max] | 1.575 V | 1.575 V |
| Voltage - Supply [Min] | 1.425 V | 1.425 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
AX250 Series
HIGH SPEED ANTIFUSE FPGAS
| Part | Mounting Type | Supplier Device Package | Total RAM Bits | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Number of Gates | Number of LABs/CLBs [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology AX250-2FG484 | Surface Mount | 484-FPBGA (23x23) | 55296 | 248 | 70 °C | 0 °C | 1.425 V | 1.575 V | 484-BGA | 250000 | 4224 |
Microchip Technology AX250-1FG256 | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 70 °C | 0 °C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-CQ208M | Surface Mount | 208-CQFP (75x75) | 55296 | 115 | 125 °C | -55 C | 1.425 V | 1.575 V | 208-BFCQFP with Tie Bar | 250000 | 4224 |
Microchip Technology AX250-1CQ352M | Surface Mount | 352-CQFP (75x75) | 55296 | 198 | 125 °C | -55 C | 1.425 V | 1.575 V | 352-BFCQFP with Tie Bar | 250000 | 4224 |
Microchip Technology AX250-1FG484 | Surface Mount | 484-FPBGA (23x23) | 55296 | 248 | 70 °C | 0 °C | 1.425 V | 1.575 V | 484-BGA | 250000 | 4224 |
Microchip Technology AX250-FG484M | Surface Mount | 484-FPBGA (23x23) | 55296 | 248 | 125 °C | -55 C | 1.425 V | 1.575 V | 484-BGA | 250000 | 4224 |
Microchip Technology AX250-FGG256 | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 70 °C | 0 °C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-1PQ208M | Surface Mount | 208-PQFP (28x28) | 55296 | 115 | 125 °C | -55 C | 1.425 V | 1.575 V | 208-BFQFP | 250000 | 4224 |
Microchip Technology AX250-PQG208M | Surface Mount | 208-PQFP (28x28) | 55296 | 115 | 125 °C | -55 C | 1.425 V | 1.575 V | 208-BFQFP | 250000 | 4224 |
Microchip Technology AX250-1FGG256M | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 125 °C | -55 C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-FGG256M | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 125 °C | -55 C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-1FGG256 | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 70 °C | 0 °C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-1FGG484 | Surface Mount | 484-FPBGA (23x23) | 55296 | 248 | 70 °C | 0 °C | 1.425 V | 1.575 V | 484-BGA | 250000 | 4224 |
Microchip Technology AX250-FG256M | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 125 °C | -55 C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-1FG256M | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 125 °C | -55 C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-2FGG484 | Surface Mount | 484-FPBGA (23x23) | 55296 | 248 | 70 °C | 0 °C | 1.425 V | 1.575 V | 484-BGA | 250000 | 4224 |
Microchip Technology AX250-2FG256I | Surface Mount | 256-FPBGA (17x17) | 55296 | 138 | 85 °C | -40 °C | 1.425 V | 1.575 V | 256-LBGA | 250000 | 4224 |
Microchip Technology AX250-1PQG208M | Surface Mount | 208-PQFP (28x28) | 55296 | 115 | 125 °C | -55 C | 1.425 V | 1.575 V | 208-BFQFP | 250000 | 4224 |
Description
General part information
AX250 Series
Axcelerator Field Programmable Gate Array (FPGA) IC 115 55296 208-BFQFP
