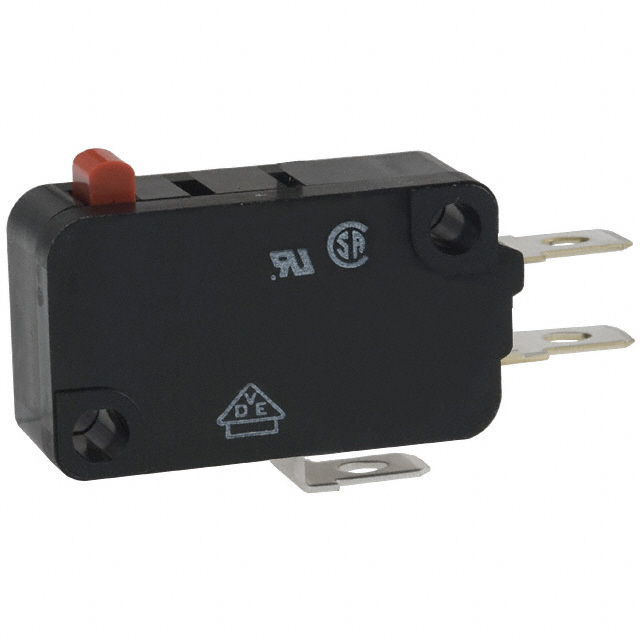

VX-5-1A2

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Mechanical Life	Voltage Rating - AC	Overtravel	Overtravel	Termination Style	Termination Style	Differential Travel	Differential Travel	Switch Function	Mounting Type	Ingress Protection	Voltage Rating - DC	Circuit	Operating Position	Operating Position	Release Force	Current Rating (Amps)	Operating Force	Electrical Life	Actuator Type
Omron Electronics Inc-EMC Div VX-5-3A3	-25 °C	80 C	0.047 in	1.2 mm	50000000 Cycles	125 V	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm	0.012 "	0.3 mm	Off-Mom	Chassis Mount	IP40	30 V	SPST-NO	0.579 in	14.7 mm	5.099 gf	5 A	50 gf	500000 Cycles	Round (Pin Plunger)
Omron Electronics Inc-EMC Div VX-5-3C22	-25 °C	80 C	0.047 in	1.2 mm	50000000 Cycles	125 V	0.04 in	1 mm	Quick Connect - 0.187" (4.7mm)		0.012 "	0.3 mm	Off-Mom	Chassis Mount	IP40	30 V	SPST-NO	0.579 in	14.7 mm	3.059 gf	5 A		500000 Cycles	Round (Pin Plunger)
Omron Electronics Inc-EMC Div VX-5-1A2	-25 °C	80 C	0.047 in	1.2 mm	50000000 Cycles	125 V	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm	0.012 "	0.3 mm	On-Mom	Chassis Mount	IP40	30 V	SPDT	0.579 in	14.7 mm	3.059 gf	5 A		500000 Cycles	Round (Pin Plunger)
