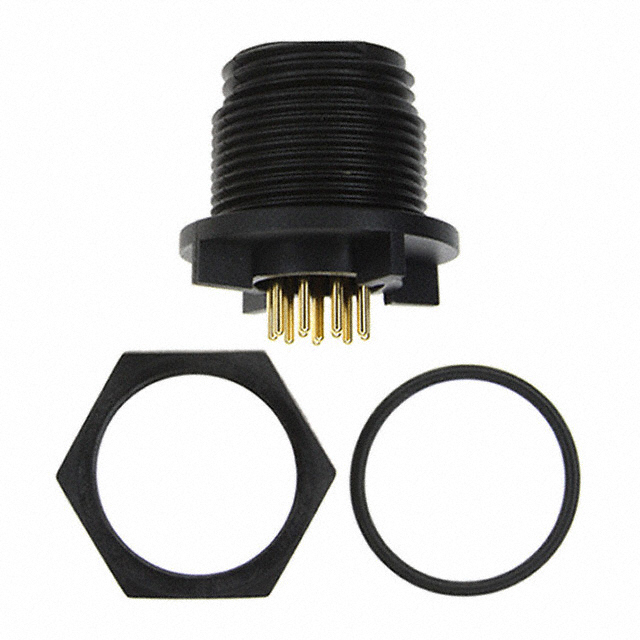

Specification	PX0413/12P/PC

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	1 A
Fastening Type	Threaded
Features	UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	12
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shielding	Unshielded
Termination	Solder
Voltage Rating	50 V
Voltage Rating (Type)	DC

PX0413 Series

Part	Color	Connector Type	Mounting Feature	Mounting Type	Shell Material	Current Rating	Features	Number of Positions	Position Types	Primary Material	Contact Finish - Mating	Termination	Material Flammability Rating	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Voltage Rating	Voltage Rating (Type)	Contact Material	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Housing Color	Contact Shape	Note	Type
BULGIN LIMITED PX0413/04S/PC	Black	Female Sockets Receptacle	Bulkhead Front Side Nut	Panel Mount Through Hole	Nylon Polyamide (PA)	5 A	UV Resistant	4	Power	Plastic	Gold	Solder	UL94 V-0	Keyed	80 °C	-40 °C	Unshielded	125 V	DC	Copper Alloy	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED PX0413/12P		Receptacle Housing	Bulkhead Front Side Nut	Panel Mount	Nylon Polyamide (PA)		UV Resistant	12	Power	Plastic			UL94 V-0	Keyed	80 °C	-40 °C	Unshielded				Threaded	Dust Tight Waterproof	IP68	Crimp Solder Cup	Black	Circular	Contacts Not Included	For Male Pins
BULGIN LIMITED PX0413/12S/PC	Black	Female Sockets Receptacle	Bulkhead Front Side Nut	Panel Mount Through Hole	Nylon Polyamide (PA)	1 A	UV Resistant	12	Power	Plastic	Gold	Solder	UL94 V-0	Keyed	80 °C	-40 °C	Unshielded	50 V	DC	Copper Alloy	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED PX0413/08S		Receptacle Housing	Bulkhead Front Side Nut	Panel Mount	Nylon Polyamide (PA)		UV Resistant	8	Power	Plastic			UL94 V-0	Keyed	80 °C	-40 °C	Unshielded				Threaded	Dust Tight Waterproof	IP68	Crimp Solder Cup	Black	Circular	Contacts Not Included	For Female Sockets
BULGIN LIMITED PX0413/10P/PC	Black	Male Pins Receptacle	Bulkhead Front Side Nut	Panel Mount Through Hole	Nylon Polyamide (PA)	1 A	UV Resistant	10	Power	Plastic	Gold	Solder	UL94 V-0	Keyed	80 °C	-40 °C	Unshielded	50 V	DC	Copper Alloy	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED PX0413/12P/PC	Black	Male Pins Receptacle	Bulkhead Front Side Nut	Panel Mount Through Hole	Nylon Polyamide (PA)	1 A	UV Resistant	12	Power	Plastic	Gold	Solder	UL94 V-0	Keyed	80 °C	-40 °C	Unshielded	50 V	DC	Copper Alloy	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED PX0413/03S		Receptacle Housing	Bulkhead Front Side Nut	Panel Mount	Nylon Polyamide (PA)		UV Resistant	3	Power	Plastic			UL94 V-0	Keyed	80 °C	-40 °C	Unshielded				Threaded	Dust Tight Waterproof	IP68	Crimp Solder Cup	Black	Circular	Contacts Not Included	For Female Sockets
BULGIN LIMITED PX0413/03S/PC	Black	Female Sockets Receptacle	Bulkhead Front Side Nut	Panel Mount Through Hole	Nylon Polyamide (PA)	8 A	UV Resistant	3	Power	Plastic	Gold	Solder	UL94 V-0	Keyed	80 °C	-40 °C	Unshielded	250 V	DC	Copper Alloy	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED PX0413/10P		Receptacle Housing	Bulkhead Front Side Nut	Panel Mount	Nylon Polyamide (PA)		UV Resistant	10	Power	Plastic			UL94 V-0	Keyed	80 °C	-40 °C	Unshielded				Threaded	Dust Tight Waterproof	IP68	Crimp Solder Cup	Black	Circular	Contacts Not Included	For Male Pins
