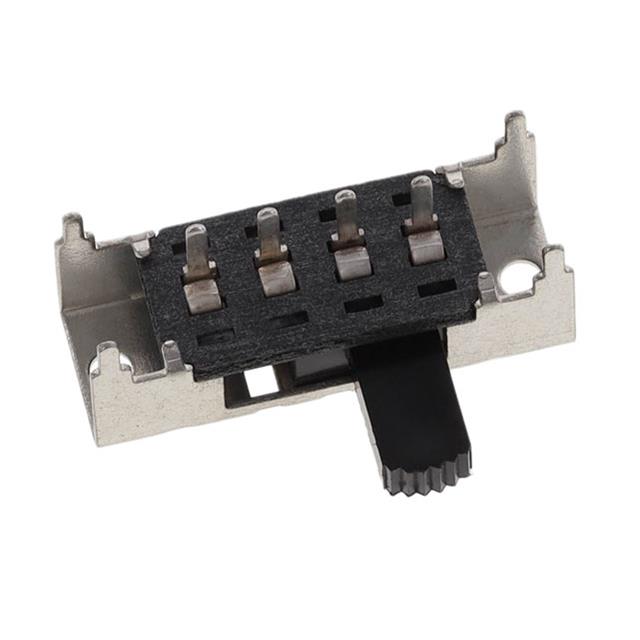

GPI-153-0008

Active

CW Industries

SWITCH SLIDE SP3T 500MA 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE SP3T 500MA 125V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Switch Travel	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Electrical Life	Contact Timing	Switch Function	Mechanical Life	Mounting Type	Actuator Material	Actuator Type	Current Rating (Amps)	Contact Material	Actuator Length [x]	Circuit
CW Industries GPI-153-0008	Silver	3.94 mm	125 V	104 °C	-10 °C	PC Pin	125 VDC	6000 Cycles	Not Specified	On-On-On	10000 Steps	Through Hole Right Angle	Nylon 6/6 Polyamide (PA66)	Standard	500 mA	Copper	8.33 mm	SP3T
CW Industries GPI-153-0000	Silver	3.94 mm	125 V	104 °C	-10 °C	PC Pin	125 VDC	6000 Cycles	Not Specified	On-On-On	10000 Steps	Through Hole Right Angle	Nylon 6/6 Polyamide (PA66)	Standard	500 mA	Copper	5.08 mm	SP3T
CW Industries GPI-153-0002	Silver	3.94 mm	125 V	104 °C	-10 °C	PC Pin	125 VDC	6000 Cycles	Not Specified	On-On-On	10000 Steps	Through Hole Right Angle	Nylon 6/6 Polyamide (PA66)	Standard	500 mA	Copper	11.5 mm	SP3T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SP3T Through Hole, Right Angle
