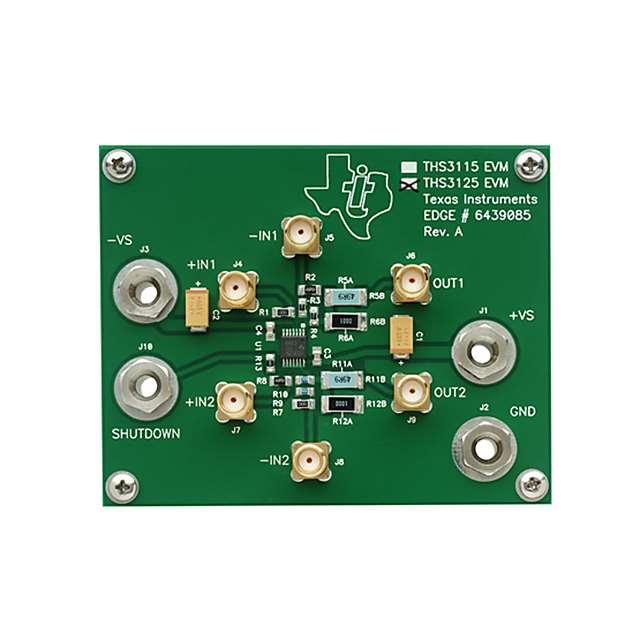

Specification	THS3125EVM

-3db Bandwidth	160 MHz
Amplifier Type	Current Feedback
Board Type	Fully Populated
Channels per IC (Count)	2
Channels per IC (Dual)	2
Channels per IC (Type)	Dual
Contents	Board
Current - Output / Channel	440 mA
Current - Supply (Main IC)	0.0084 mA
Output Type	Single-Ended
Slew Rate	1550 V/µs
Supplied Contents	Board(s)
Supply Configuration	Dual, Single
Utilized IC / Part	THS3125
Voltage - Supply (Dual) Maximum (Magnitude)	15 V
Voltage - Supply (Dual) Minimum (Magnitude)	5 V
Voltage - Supply (Single) Maximum	30 V
Voltage - Supply (Single) Minimum	10 V

THS312 Series

Part	Board Type	Supplied Contents	Current - Supply (Main IC)	-3db Bandwidth	Current - Output / Channel	Utilized IC / Part	Output Type	Supply Configuration	Voltage - Supply (Single) Minimum	Voltage - Supply (Dual) Minimum (Magnitude)	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Single) Maximum	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Amplifier Type	Slew Rate	Contents	Package Width	Package Name	Package Length	Current - Input Bias	Gain Bandwidth Product	Voltage - Supply Span (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input Offset	Mounting Type	Current - Supply	Number of Circuits	Voltage - Supply Span (Min)	Package Features
Texas Instruments THS3122EVM	Fully Populated	Board(s)	0.0084 mA	160 MHz	440 mA	THS3122	Single-Ended	Dual Single	10 V	5 V	15 V	30 V	2	Dual	2	Current Feedback	1550 V/µs	Board
Texas Instruments THS3125IDRG4				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	14-SOIC	0.154 in	6 µA	138 MHz	30 V	-40 °C	85 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
Texas Instruments THS3120CDR				130 MHz	490 mA											Current Feedback	1700 V/µs		3.9 mm	8-SOIC	0.154 in	3 µA		30 V	0 °C	70 °C	2 mV	Surface Mount	7 mA	1	10 V
Texas Instruments THS3125CDR				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	14-SOIC	0.154 in	6 µA	138 MHz	30 V	0 °C	70 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
Texas Instruments THS3120CDRG4				130 MHz	490 mA											Current Feedback	1700 V/µs		3.9 mm	8-SOIC	0.154 in	3 µA		30 V	0 °C	70 °C	2 mV	Surface Mount	7 mA	1	10 V
Texas Instruments THS3122IDDARG3				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	8-PowerSOIC 8-SO PowerPad	0.154 in	6 µA	138 MHz	30 V	-40 °C	85 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
Texas Instruments THS3122CDR				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	8-SOIC	0.154 in	6 µA	138 MHz	30 V	0 °C	70 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
Texas Instruments THS3121IDGNR				130 MHz	490 mA											Current Feedback	1700 V/µs		3 mm	8-HVSSOP 8-MSOP 8-TSSOP	0.118 in	3 µA		30 V	-40 °C	85 °C	2 mV	Surface Mount	7 mA	1	10 V	Exposed Pad
Texas Instruments THS3122IDRG4				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	8-SOIC	0.154 in	6 µA	138 MHz	30 V	-40 °C	85 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
Texas Instruments THS3122IDR				160 MHz	440 mA											Current Feedback	1550 V/µs		3.9 mm	8-SOIC	0.154 in	6 µA	138 MHz	30 V	-40 °C	85 °C	4.4 mV	Surface Mount	8.4 mA	2	10 V
