TAA541B1411-001
ActiveTE Connectivity AMP Connectors

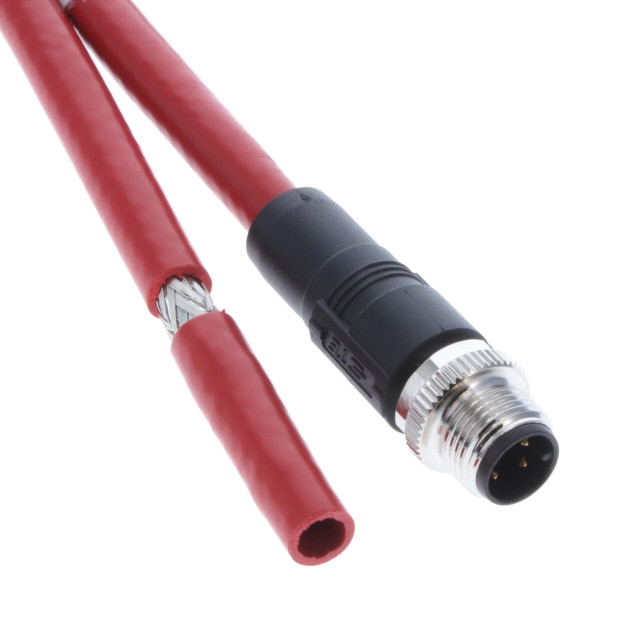

CBL CIRC 4POS MALE TO WIRE 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsM8/M12 Cable Aassemblies Catalog
TAA541B1411-001
ActiveTE Connectivity AMP Connectors
CBL CIRC 4POS MALE TO WIRE 1.64'
Deep-Dive with AI
DocumentsM8/M12 Cable Aassemblies Catalog
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TAA541B1411-001 | TAA54 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle, Receptacle, Right Angle, Plug, Right Angle |
| 2nd Connector Gender | - | Female Sockets |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 4 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | - | M12 |
| 2nd Connector Type | Wire Leads | Plug, Right Angle, Plug, Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Red | Red |
| Ingress Protection | NEMA 3, IP67, NEMA 6P, NEMA 1, NEMA 4 | IP67 - Dust Tight, Waterproof, NEMA 3, IP67, NEMA 6P, NEMA 1, NEMA 4, IP68, IP69K |
| Length | - | 19.69 ft |
| Length | - | 6 m |
| Length [x] | 1.64 ft | 1.64 - 13.12 ft |
| Length [x] | 500 mm | 1 - 500 m |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments, Cat5e, PoE+ | Industrial Environments, Cat5e, PoE+ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.38 | |
| 10 | $ 15.06 | |||
| 25 | $ 14.66 | |||
| 50 | $ 14.10 | |||
TAA54 Series
CBL 4POS RCPT TO PLUG RA 13.12'
| Part | 2nd Connector Gender | 2nd Connector Shell Size - Insert | 1st Connector Type | 1st Connector Number of Positions | Shielding | Color | Cable Material | 2nd Connector Number of Positions | Length [x] | Length [x] | 2nd Connector Number of Positions Loaded | 1st Connector Gender | 2nd Connector Mounting Type | Usage | 1st Connector Orientation | 1st Connector Shell Size - Insert | Assembly Configuration | Cable Type | 2nd Connector Type | 1st Connector Mounting Type | Ingress Protection | 1st Connector Number of Positions Loaded | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TAA546B1411-040 | Female Sockets | M12 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | 4 m | 13.12 ft | All | Male Pins | Free Hanging (In-Line) | Industrial Environments | A | M12 | Standard | Round | Plug, Right Angle | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | ||
TE Connectivity AMP Connectors TAA54AB1411-060 | Female Sockets | M12 | Receptacle, Right Angle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | All | Male Pins | Free Hanging (In-Line) | Industrial Environments | A | M12 | Standard | Round | Plug | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | 19.69 ft | 6 m | ||
TE Connectivity AMP Connectors TAA54AB1411-001 | Female Sockets | M12 | Receptacle, Right Angle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | 500 mm | 1.64 ft | All | Male Pins | Free Hanging (In-Line) | A | M12 | Standard | Round | Plug | Free Hanging (In-Line) | All | ||||
TE Connectivity AMP Connectors TAA546B1411-007 | Female Sockets | M12 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | All | Male Pins | Free Hanging (In-Line) | Industrial Environments | A | M12 | Standard | Round | Plug, Right Angle | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | ||||
TE Connectivity AMP Connectors TAA545B1411-020 | Female Sockets | M12 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | 2 m | 6.56 ft | All | Male Pins | Free Hanging (In-Line) | Industrial Environments | A | M12 | Standard | Round | Plug | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | ||
TE Connectivity AMP Connectors TAA541B1411-002 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 1 m | 3.28 ft | Male Pins | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | |||||||
TE Connectivity AMP Connectors TAA541B1411-040 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 m | 13.12 ft | Male Pins | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | |||||||
TE Connectivity AMP Connectors TAA541B1411-001 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 500 mm | 1.64 ft | Male Pins | Cat5e, Industrial Environments, PoE+ | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67, NEMA 1, NEMA 3, NEMA 4, NEMA 6P | All | |||||||
TE Connectivity AMP Connectors TAA544B1411-001 | Plug, Right Angle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 500 mm | 1.64 ft | Female Sockets | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP68, IP69K | All | |||||||
TE Connectivity AMP Connectors TAA544B1411-060 | Plug, Right Angle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | Female Sockets | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | 19.69 ft | 6 m | |||||||
TE Connectivity AMP Connectors TAA545B1411-002 | Female Sockets | M12 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 | 1 m | 3.28 ft | All | Male Pins | Free Hanging (In-Line) | Industrial Environments | A | M12 | Standard | Round | Plug | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | ||
TE Connectivity AMP Connectors TAA544B1411-040 | Plug, Right Angle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | 4 m | 13.12 ft | Female Sockets | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | |||||||
TE Connectivity AMP Connectors TAA541B1411-007 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | Male Pins | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | |||||||||
TE Connectivity AMP Connectors TAA541B1411-060 | Receptacle | 4 | Shielded | Red | Polyvinyl Chloride (PVC) | Male Pins | Industrial Environments | A | M12 | Standard | Round | Wire Leads | Free Hanging (In-Line) | IP67 - Dust Tight, Waterproof | All | 19.69 ft | 6 m |
Description
General part information
TAA54 Series
Circular Cable Assembly Shielded 1.64' (500.00mm)
