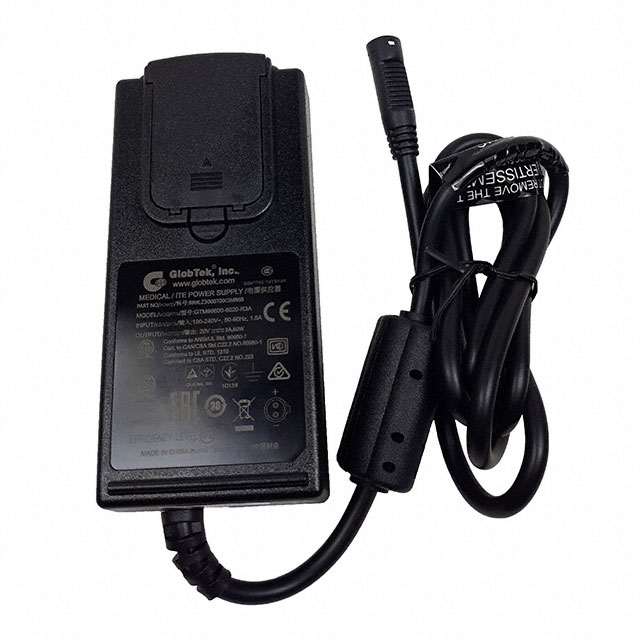

RR9LZ3000T00CIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 20V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR9LZ3000T00CIMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 20V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LZ3000T00CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	20 V

RR9LZ3000 Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Power (Watts)	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Approval Agency	Voltage - Output	Standard Number	Form	Output Connector	Cord Length	Cord Length	No Load Power Consumption [Max]	Efficiency	Current - Output (Max)	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Current - Output (Max) [Max]
GlobTek, Inc. RR9LZ3000USBCG2(R6B)	-10 °C	50 °C	60 W	Cord Multi-Blade	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	International	90 VAC	264 VAC	ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	5 V 5.8 V 9 V 12 V 15 VDC 20 V	1310 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount (Class I)	USB C Power Delivery (PD)	1.5 m	59 in	75 mW	CoC Tier 2 Level VI	3 A 3.6 A 4 A 4.4 A 4.6 A
GlobTek, Inc. RR9LZ3000USBCPPS(R6B)			60 W	Cord Multi-Blade	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	International	90 VAC	264 VAC	ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	5 V 5.8 V 9 V 12 V 15 VDC 20 V	60601-1 60950-1 62368-1	Desktop Wall Mount (Class I)	USB C	1.5 m	59 in	75 mW	CoC Tier 1 Level VI	3 A 3.6 A 4 A 4.4 A 4.6 A	11 V	3.6 V	-10 °C	40 °C
GlobTek, Inc. RR9LZ3000T00CIMR6B			60 W	Cord Multi-Blade	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	International	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	20 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount (Class I)	1.3mm x 3.5mm Barrel Plug Kit	47.2 in		150 mW	Level VI				-20 C	40 °C	1.2 m	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.50
		5	$ 21.61
		10	$ 20.84
		25	$ 19.87
		60	$ 18.99
		120	$ 18.31
		300	$ 17.46
		540	$ 16.93

Description

General part information

RR9LZ3000 Series

20V 60 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
