142178-75

Active

Amphenol RF

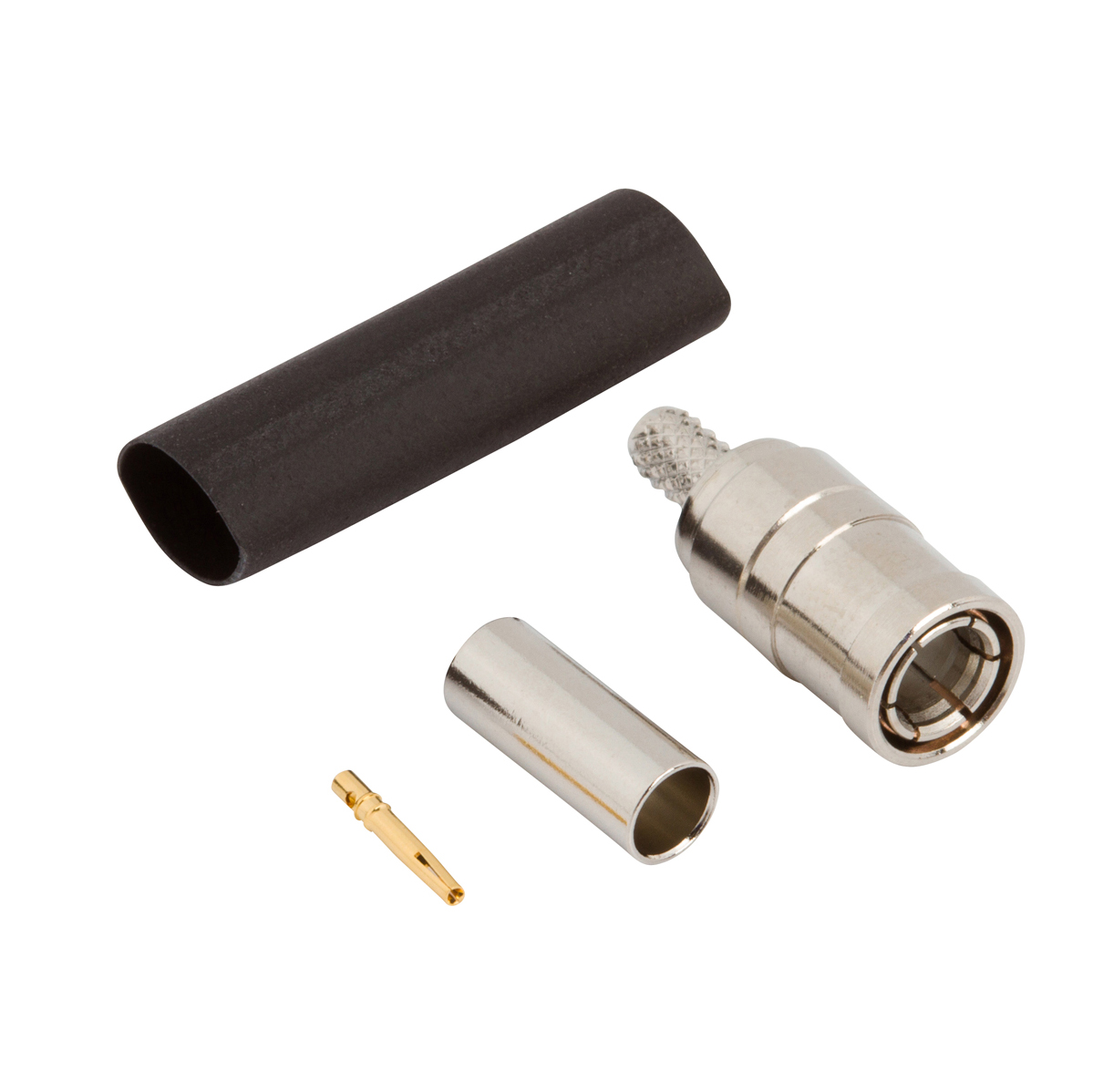

MINI-SMB STRAIGHT CRIMP PLUG RG-179 BELDEN 179DT 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

MINI-SMB STRAIGHT CRIMP PLUG RG-179 BELDEN 179DT 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	142178-75

Body Finish	Nickel
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Dielectric Material	Contact Termination	Body Finish	Insertion Loss	Center Contact Plating	Mating Cycles	Impedance	Center Contact Material	Body Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Cable Group	Voltage Rating	Fastening Type	Number of Ports	Connector Type	Shield Termination
Amphenol RF 142178-75	Polytetrafluoroethylene (PTFE)	Solder	Nickel	0.3 dB	Gold	500	75 Ohms	Beryllium Copper	Brass	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	187 RG-179	335 V	Snap-On	1	Female Socket Plug	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.17
Newark	Each	100	$ 6.65
		250	$ 6.45

General part information

SMB, Mini Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Solder
