BU-1111-A-60-2

Active

MUELLER ELECTRIC

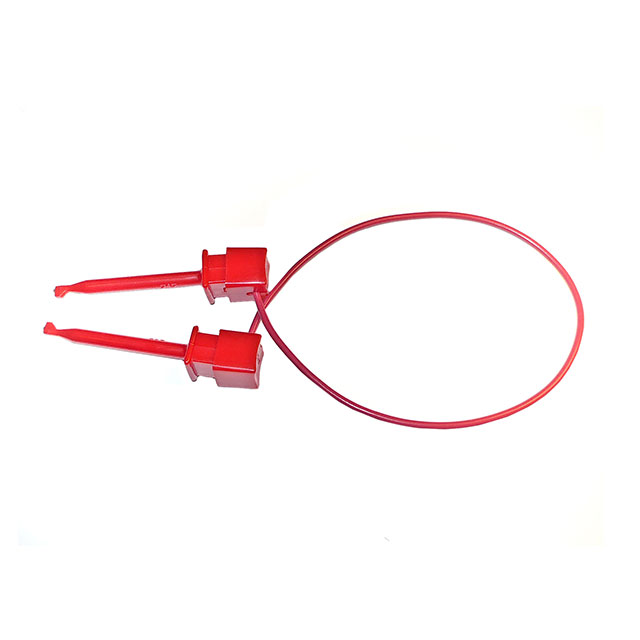

RED MINI-PLUNGER CLIP ON BOTH ENDS, 60" 20G PVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-1111-A-60-2

Active

MUELLER ELECTRIC

RED MINI-PLUNGER CLIP ON BOTH ENDS, 60" 20G PVC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.48
Newark	Each	100	$ 12.16
		250	$ 11.30
		500	$ 10.55

Description

General part information

BU-1111 Series

60.0" (1524.00mm) Mini Hook To Mini Hook Test Lead 300V 1 Lead, Red

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-1111-A-60-2	BU-1111 Series

1st Connector	Mini Hook	Mini Hook
2nd Connector	Mini Hook	Mini Hook
Cable Length	1524 mm	304.8 - 1524 mm
Cable Length	5 ft	5 - 48 in
Configuration	Hook to Grabber, Hook, Grabber	Hook to Grabber, Hook, Grabber
Contents	Red	Red, 1 Lead, Black
Contents [custom]	1	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C	105 °C
Temperature Range	221 °F	221 °F
Voltage - Rated	300 V	300 V
Wire Gauge	20 AWG	20 AWG

BU-1111 Series

TEST PATCH LEAD, PLUNGER CLIPS, PLUNGER CLIPS, 36 ", 900 MM, RED, 5 A

Part	Cable Length	Cable Length	Temperature Range	Temperature Range	Configuration	Wire Gauge	Voltage - Rated	2nd Connector	Current Rating (Amps)	1st Connector	Material - Insulation	Contents [custom]	Contents
MUELLER ELECTRIC BU-1111-A-36-2	36 in	914.4 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-12-0	12 in	304.8 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-60-0	5 ft	1524 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-24-2	24 "	609.6 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-24-0	24 "	609.6 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-12-2	12 in	304.8 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-36-0	36 in	914.4 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-48-0	48 in	1219.2 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-48-2	48 in	1219.2 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-60-2	5 ft	1524 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
