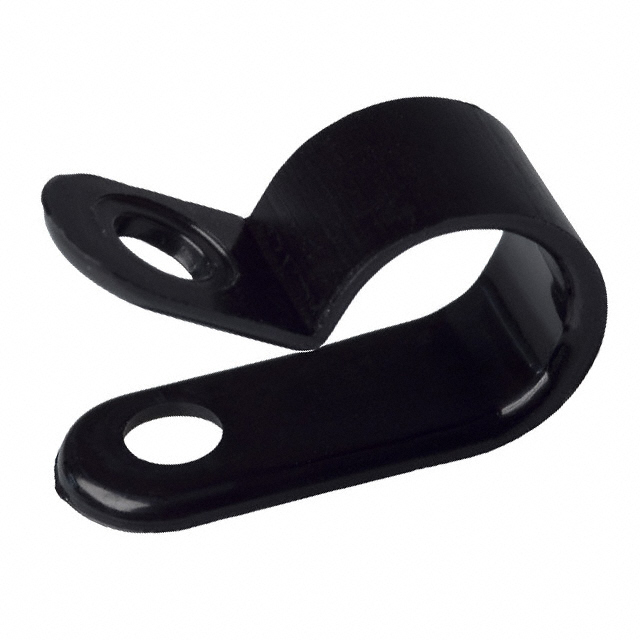

N-6-BK

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 9.5 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 9.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 9.5 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 9.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	N-6-BK

Bundle Center to Mounting Center	0.484 in
Bundle Center to Mounting Center	12.29 mm
Color	Black
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Panel Hole Size	0.172 in
Panel Hole Size	4.37 mm
Screw Size	M4
Screw Size	#8
Type	Clamp, P-Type
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Type	Material Thickness	Material Thickness	Panel Hole Size [diameter]	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Mounting Type	Material Flammability Rating	Screw Size	Screw Size	Color	Material	Width [x]	Width [x]	Panel Hole Size
Essentra Access Solutions N-6B-BK	Clamp P-Type	0.063 in	1.6 mm	0.204 in	5.18 mm	0.484 in	12.29 mm	Fastener	UL94 V-2	M5	#10	Black	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions N-6-BK	Clamp P-Type	0.063 in	1.6 mm		4.37 mm	0.484 in	12.29 mm	Fastener	UL94 V-2	M4	#8	Black	Polyamide (PA66) Nylon 6/6	0.375 in	9.53 mm	0.172 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, P-Type Black Fastener 0.375" (9.53mm)
