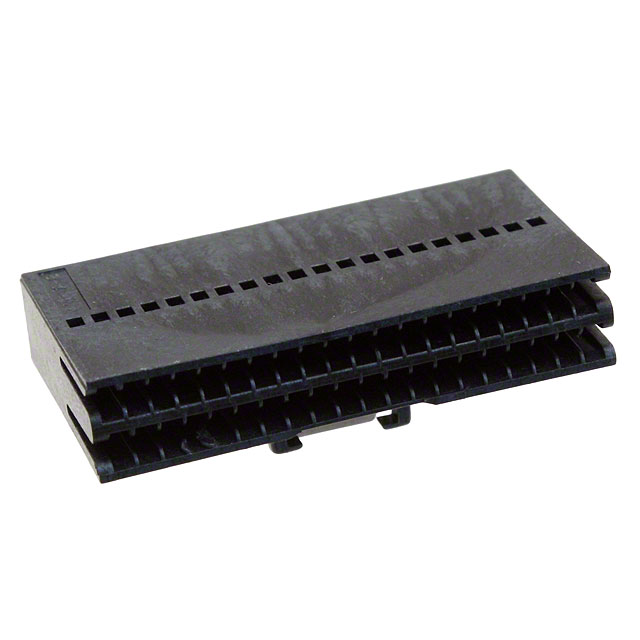

Specification	4-487937-0

Connector Type	Housing for Female Contacts
Current Rating	1.5 A
FFC, FCB Thickness (Max)	0.08 mm
FFC, FCB Thickness (Min)	0.05 mm
Flat Flex Type	FFC
Housing Color	Black
Housing Material	Polyester
Locking Feature	Latch Lock
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.05 in
Voltage Rating	100 VAC

487937 Series

Part	Connector Type	Material Flammability Rating	Number of Rows	Pitch	Flat Flex Type	Number of Positions	Locking Feature	Housing Material	Voltage Rating	FFC, FCB Thickness (Min)	FFC, FCB Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Note	Housing Color
TE Connectivity AMP Connectors 6-487937-0	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	60	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black

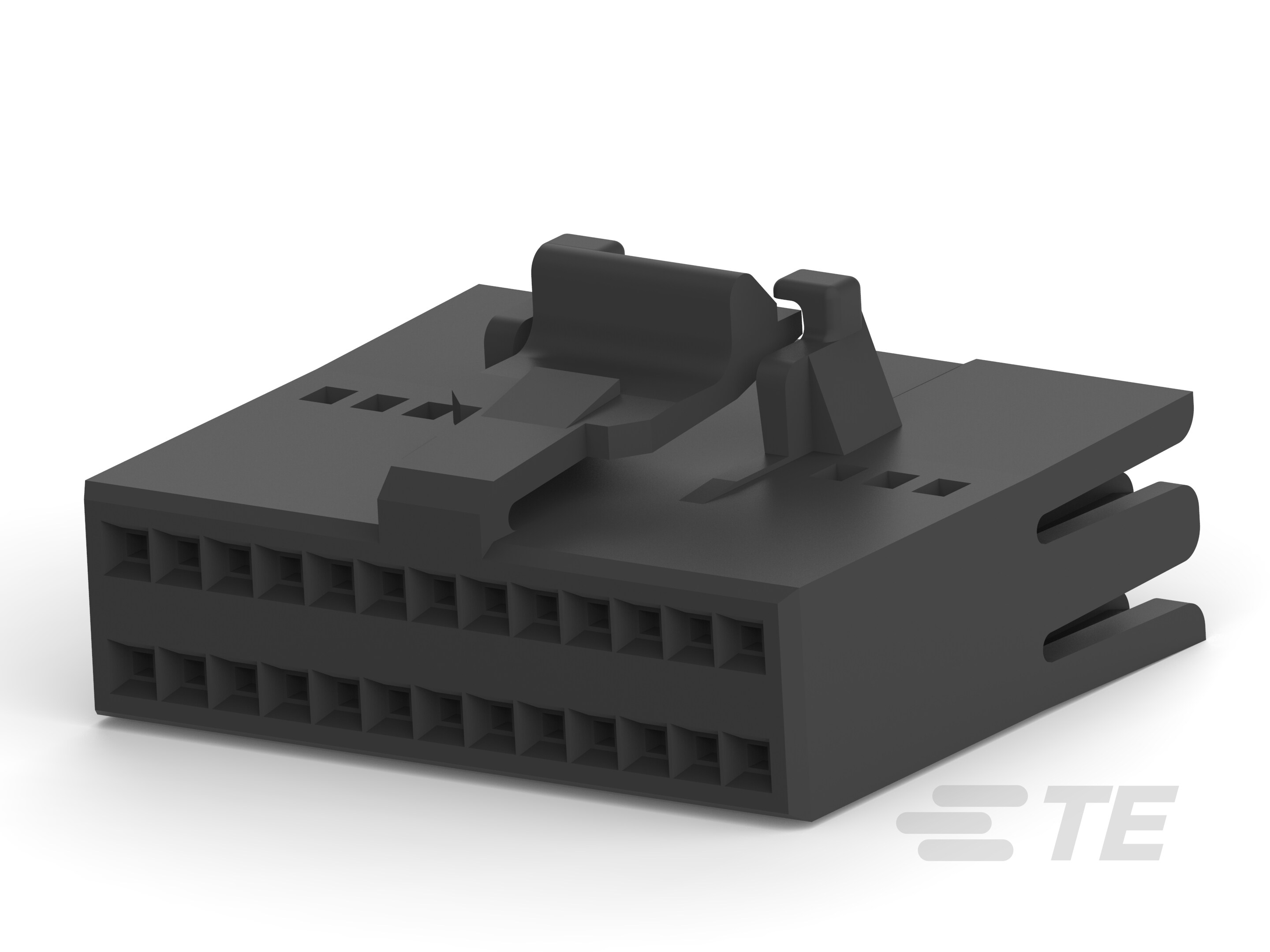

TE Connectivity AMP Connectors 2-487937-6	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	26	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black
TE Connectivity AMP Connectors 487937-8	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	8	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black
TE Connectivity AMP Connectors 1-487937-4	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	14	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black
TE Connectivity AMP Connectors 4-487937-0	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	40	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black
TE Connectivity AMP Connectors 2-487937-4	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	24 pos	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black

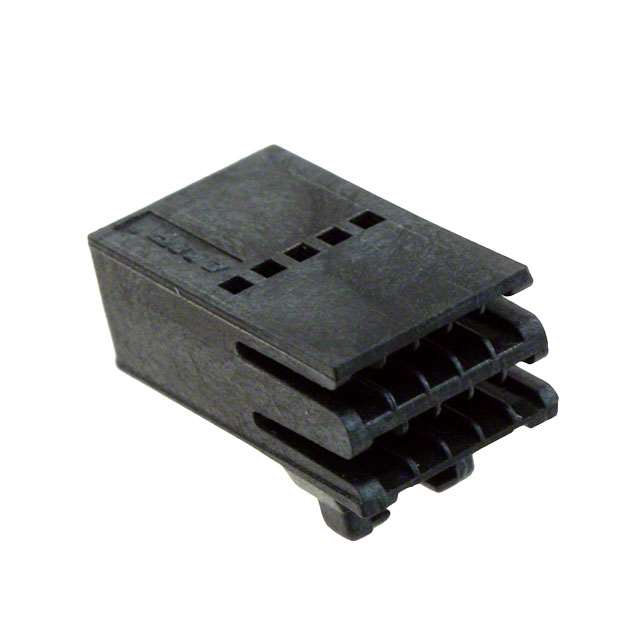

TE Connectivity AMP Connectors 1-487937-0	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	10	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black

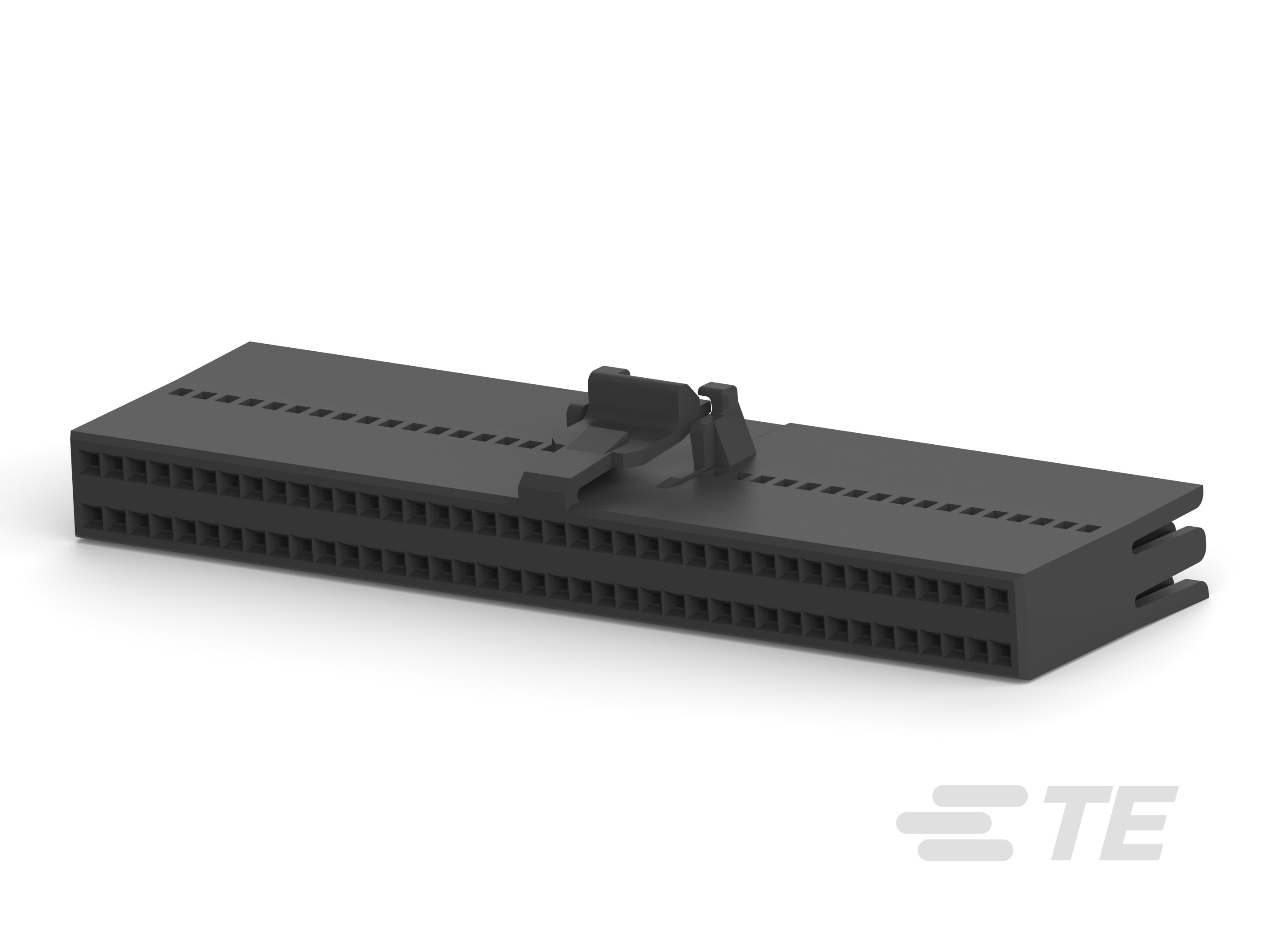

TE Connectivity AMP Connectors 8-487937-0	Housing for Female Contacts	UL94 V-0	2	0.05 in	FFC	80	Latch Lock	Polyester	100 VAC	0.05 mm	0.08 mm	-55 °C	105 °C	1.5 A	Contacts Not Included	Black
