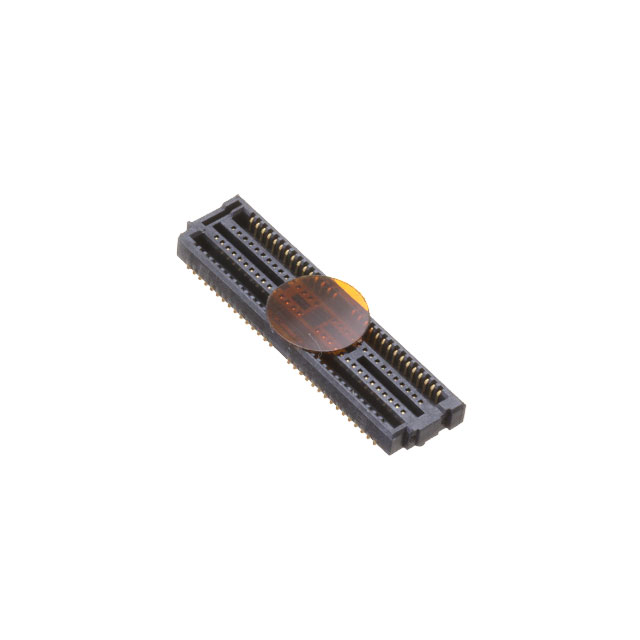

LTH-030-01-G-D-A-K-TR
ActiveSamtec Inc.
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LTH-030-01-G-D-A-K-TR
ActiveSamtec Inc.
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTH-030-01-G-D-A-K-TR |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.066 in |
| Height Above Board | 1.68 mm |
| Mated Stacking Heights | 2.31 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.61 | |
| 50 | $ 3.31 | |||
| 100 | $ 3.10 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.65 | |||
| Digi-Reel® | 1 | $ 3.61 | ||
| 50 | $ 3.31 | |||
| 100 | $ 3.10 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.65 | |||
| Tape & Reel (TR) | 1425 | $ 2.60 | ||
Description
General part information
LTH-030 Series
60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
