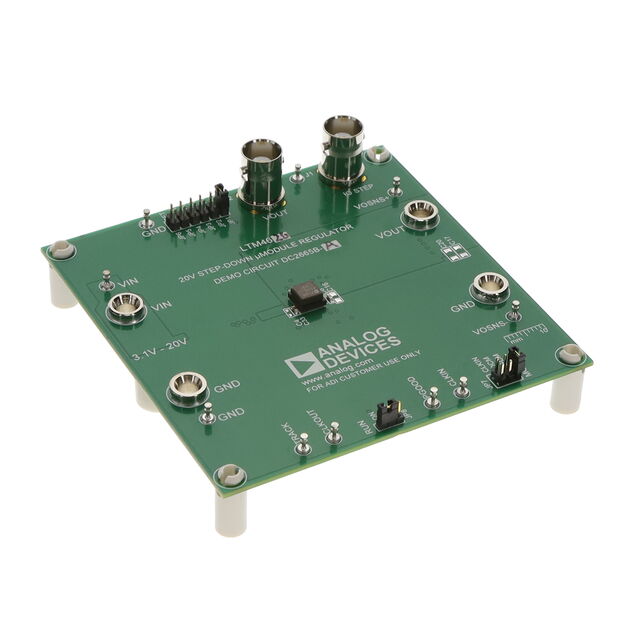

DC2665B-A

Active

Analog Devices

LTM4626 DC TO DC CONVERTER AND SWITCHING REGULATOR MODULE 0.98V TO 1.02V/1.47V TO 1.53V/2.45V TO 2.55V/3.23V TO 3.37V/4.9V TO 5.1V OUTPUT DEMONSTRATION CIRCUIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2665B-A

Active

Analog Devices

LTM4626 DC TO DC CONVERTER AND SWITCHING REGULATOR MODULE 0.98V TO 1.02V/1.47V TO 1.53V/2.45V TO 2.55V/3.23V TO 3.37V/4.9V TO 5.1V OUTPUT DEMONSTRATION CIRCUIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2665B-A

Board Type	Fully Populated
Current - Output	12 A
Frequency - Switching	600 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	LTM4626
Voltage - Input [Max]	20 V
Voltage - Input [Min]	3.1 V
Voltage - Output	1 V

LTM4626 Series

Part	Supplied Contents	Outputs and Type	Outputs and Type	Current - Output	Board Type	Utilized IC / Part	Frequency - Switching	Main Purpose	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology
Analog Devices DC2665B-A	Board(s)	Non-Isolated	1	12 A	Fully Populated	LTM4626	600 kHz	DC/DC Step Down	1 V	20 V	3.1 V	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 72.51
Digikey	Box	1	$ 77.35

Description

General part information

LTM4626 Series

LTM4626 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
