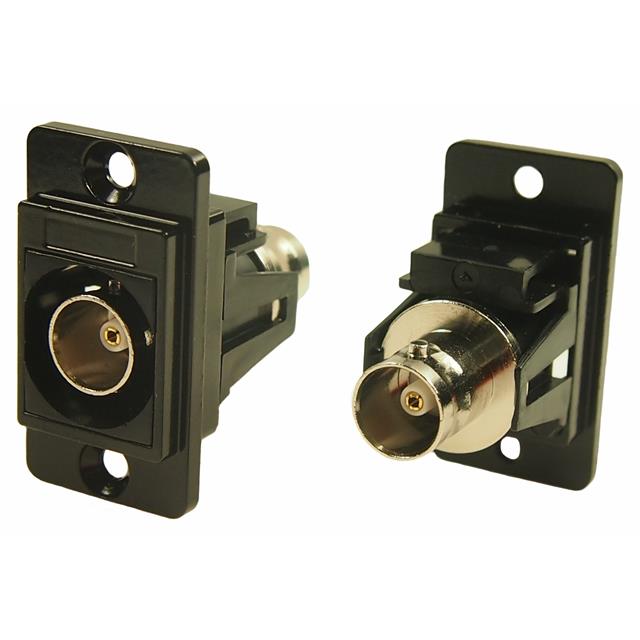

CP30738MB
ActiveCLIFF Electronic Components Ltd
DUALSLIM BLKMTL BNC 75OHMS CSK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP30738MB
ActiveCLIFF Electronic Components Ltd
DUALSLIM BLKMTL BNC 75OHMS CSK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CP30738MB | CP307 Series |
|---|---|---|
| Adapter Series | BNC to BNC | BNC to BNC |
| Adapter Type | Jack to Jack | Jack to Jack |
| Body Finish | Nickel | Nickel |
| Body Material | Brass | Brass |
| Center Contact Material | Brass | Brass |
| Center Gender | Female to Female | Female to Female |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack | Female Socket, BNC Jack |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Impedance | 75 Ohms | 50 - 75 Ohms |
| Mounting Feature | Flange | Flange |
| Mounting Type | - | Panel Mount, Square Flange |
| Style | Straight | Straight |
CP307 Series
DUALSLIM BLKMTL BNC 75OHMS CSK
| Part | Adapter Series | Center Gender | Center Contact Material | Style | Convert To (Adapter End) | Conversion Type | Body Material | Body Finish | Fastening Type | Impedance | Dielectric Material | Convert From (Adapter End) | Mounting Feature | Adapter Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CLIFF Electronic Components Ltd CP30738MB | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 75 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737MB440 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30738MB3 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 75 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30738M3 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 75 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30738MX1 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 75 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737X1 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737M3 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737MX1 | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack | |
CLIFF Electronic Components Ltd CP30737X | BNC to BNC | Female to Female | Brass | Straight | BNC Jack, Female Socket | Same Series | Brass | Nickel | Bayonet Lock | 50 Ohms | Polypropylene (PP) | BNC Jack, Female Socket | Flange | Jack to Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.71 | |
| 10 | $ 6.69 | |||
| 25 | $ 6.05 | |||
| 40 | $ 5.75 | |||
| 80 | $ 5.68 | |||
Description
General part information
CP307 Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
