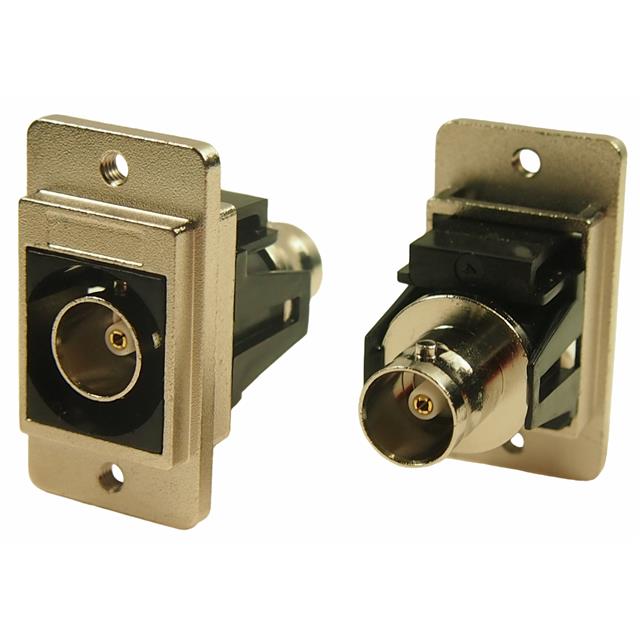

CP30738M3

Active

CLIFF Electronic Components Ltd

DUALSLIM METAL BNC 75OHMS M3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP30738M3

Active

CLIFF Electronic Components Ltd

DUALSLIM METAL BNC 75OHMS M3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.42
		10	$ 6.68
		25	$ 6.29
		50	$ 6.13
		100	$ 5.97
		250	$ 5.68

Description

General part information

CP307 Series

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms

Documents

Technical documentation and resources

Datasheet

Specification	CP30738M3	CP307 Series

Adapter Series	BNC to BNC	BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, BNC Jack
Dielectric Material	Polypropylene (PP)	Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Impedance	75 Ohms	50 - 75 Ohms
Mounting Feature	Flange	Flange
Mounting Type	-	Panel Mount, Square Flange
Style	Straight	Straight

Part	Adapter Series	Center Gender	Center Contact Material	Style	Convert To (Adapter End)	Conversion Type	Body Material	Body Finish	Fastening Type	Impedance	Dielectric Material	Convert From (Adapter End)	Mounting Feature	Adapter Type
CLIFF Electronic Components Ltd CP30738MB	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	75 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737MB440	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30738MB3	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	75 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30738M3	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	75 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30738MX1	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	75 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737X1	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737M3	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737MX1	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
CLIFF Electronic Components Ltd CP30737X	BNC to BNC	Female to Female	Brass	Straight	BNC Jack, Female Socket	Same Series	Brass	Nickel	Bayonet Lock	50 Ohms	Polypropylene (PP)	BNC Jack, Female Socket	Flange	Jack to Jack
