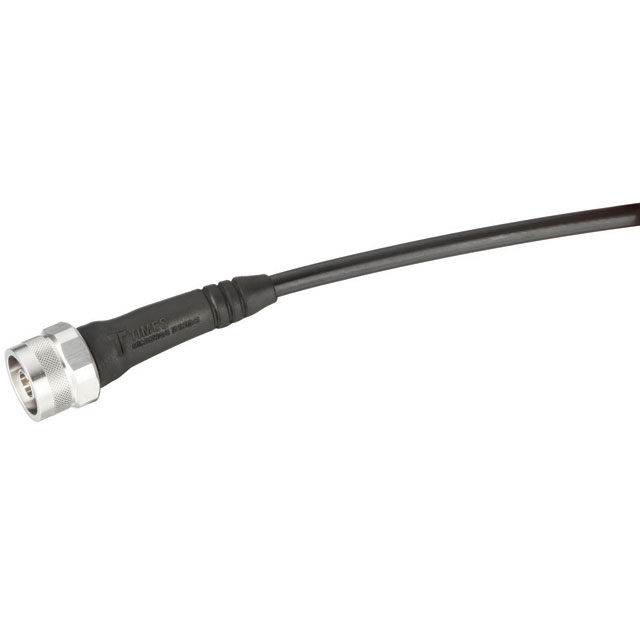

LMR-240-FR-PVC

Active

Amphenol Times Microwave Systems

LMR-240 W/ FRPVC JKT, LISTED CMR

Deep-Dive with AI

Search across all available documentation for this part.

LMR-240-FR-PVC

Active

Amphenol Times Microwave Systems

LMR-240 W/ FRPVC JKT, LISTED CMR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5	$ 632.51

Description

General part information

LMR-240 Series

Coaxial Cable 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-240-FR-PVC	LMR-240 Series

Cable Type	Coaxial	Coaxial - Riser, Coaxial, Coaxial - Plenum
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	3.81 mm	3.81 mm
Dielectric Diameter [diameter]	0.15 in	0.15 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	Fire Retardant	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	0.24 in	0.214 - 0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm	5.44 - 6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser	Polyethylene (PE), Riser, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Poly-Vinyl Chloride (PVC), Riser, Low Smoke Zero Halogen (LSZH), Fluoropolymer, Plenum, Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black, Red
Length	-	15.24 - 152.4 m
Length	-	50 - 6000 "
Length	-	3.05 - 30.48 m
Length	-	10 - 100 ft
Length	-	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid
Spool Size	-	500 '
Spool Size	-	152.4 m
Usage	-	Antenna
VoP, Velocity of Propagation	83	76 - 84

LMR-240 Series

CABLE LMR-240 FRPE 100'

Part	Conductor Strand	Length	Length	Jacket (Insulation) Material	VoP, Velocity of Propagation	Dielectric Material	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Length [x]	Length [x]	Shield Material	Features	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Length	Spool Size	Spool Size
Amphenol Times Microwave Systems LMR-240-FR	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE), Riser	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned	Fire Retardant	Coaxial - Riser	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-PVC-W	Solid			Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in		85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-MA	Solid	15.24 m	50 ft	Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	30.48 m	100 ft	Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare	Antenna
Amphenol Times Microwave Systems LMR-240-DB	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned	Direct Burial, Watertight	Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-FR-PVC	Solid			Poly-Vinyl Chloride (PVC), Riser	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned	Fire Retardant	Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-75-LSZH	Solid			Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	84	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	75 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-LLPX	Solid			Fluoropolymer, Plenum	76	Polytetrafluoroethylene (PTFE)	Braid	3.81 mm	0.15 in	Red	125 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial - Plenum	0.214 in	5.44 mm	Copper, Bare		Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-240-PVC	Solid			Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare		Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-240-75-FR	Solid			Polyethylene (PE)	84	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	75 Ohms			Aluminum, Copper, Tinned	Fire Retardant	Coaxial	0.24 in	6.1 mm	Copper, Bare
