LMR-240-FR

Active

Amphenol Times Microwave Systems

CABLE LMR-240 FRPE 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-240-FR

Active

Amphenol Times Microwave Systems

CABLE LMR-240 FRPE 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 78.30

Description

General part information

LMR-240 Series

Coaxial - Riser Cable 100.0' (30.48m) 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-240-FR	LMR-240 Series

Cable Type	Coaxial - Riser	Coaxial - Riser, Coaxial, Coaxial - Plenum
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	3.81 mm	3.81 mm
Dielectric Diameter [diameter]	0.15 in	0.15 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	Fire Retardant	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	0.24 in	0.214 - 0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm	5.44 - 6.1 mm
Jacket (Insulation) Material	Polyethylene (PE), Riser	Polyethylene (PE), Riser, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Poly-Vinyl Chloride (PVC), Riser, Low Smoke Zero Halogen (LSZH), Fluoropolymer, Plenum, Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black, Red
Length	76.2 m, 15.24 m	15.24 - 152.4 m
Length	3000 ", 50 ft	50 - 6000 "
Length	-	Enter Number of Feet in Order Quantity
Length [x]	3.05 m, 30.48 m	3.05 - 30.48 m
Length [x]	10 ft, 100 ft	10 - 100 ft
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid
Spool Size	-	500 '
Spool Size	-	152.4 m
Usage	-	Antenna
VoP, Velocity of Propagation	83	76 - 84

LMR-240 Series

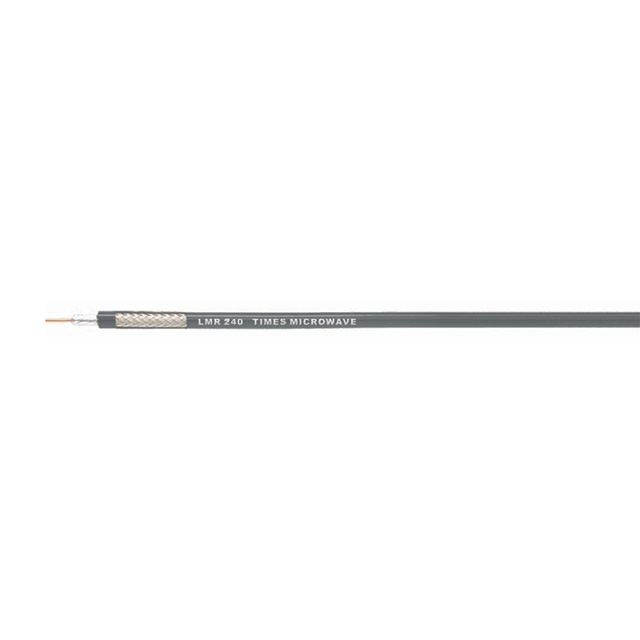

CABLE LMR-240 FRPE 100'

Part	Conductor Strand	Length	Length	Jacket (Insulation) Material	VoP, Velocity of Propagation	Dielectric Material	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Length [x]	Length [x]	Shield Material	Features	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Length	Spool Size	Spool Size
Amphenol Times Microwave Systems LMR-240-FR	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE), Riser	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned	Fire Retardant	Coaxial - Riser	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-PVC-W	Solid			Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in		85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-MA	Solid	15.24 m	50 ft	Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	30.48 m	100 ft	Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare	Antenna
Amphenol Times Microwave Systems LMR-240-DB	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned	Direct Burial, Watertight	Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-FR-PVC	Solid			Poly-Vinyl Chloride (PVC), Riser	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned	Fire Retardant	Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240	Solid	15.24 m, 76.2 m	50 ft, 3000 "	Polyethylene (PE)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms	3.05 m, 30.48 m	10 ft, 100 ft	Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-75-LSZH	Solid			Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	84	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	75 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare
Amphenol Times Microwave Systems LMR-240-LLPX	Solid			Fluoropolymer, Plenum	76	Polytetrafluoroethylene (PTFE)	Braid	3.81 mm	0.15 in	Red	125 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial - Plenum	0.214 in	5.44 mm	Copper, Bare		Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-240-PVC	Solid			Poly-Vinyl Chloride (PVC)	83	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	50 Ohms			Aluminum, Copper, Tinned		Coaxial	0.24 in	6.1 mm	Copper, Bare		Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-240-75-FR	Solid			Polyethylene (PE)	84	Foam Polyethylene (FPE)	Braid	3.81 mm	0.15 in	Black	85 °C	-40 °C	75 Ohms			Aluminum, Copper, Tinned	Fire Retardant	Coaxial	0.24 in	6.1 mm	Copper, Bare
