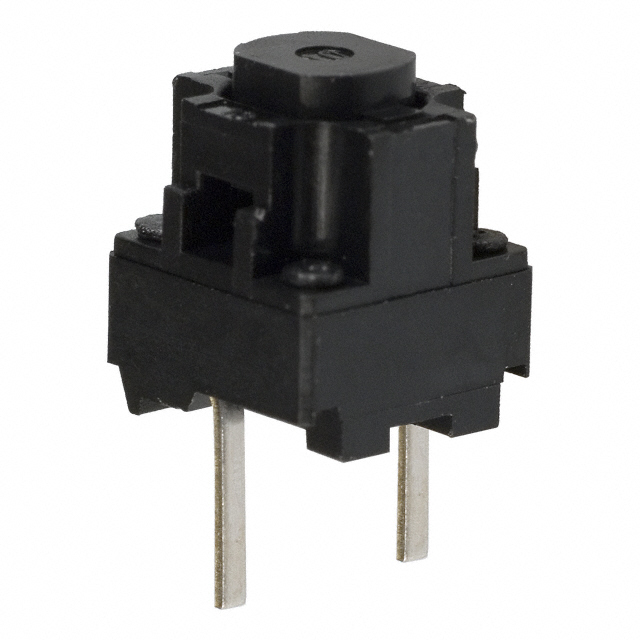

B3M-6009

Obsolete

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	B3M-6009

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	2000000 Cycles
Mounting Type	Through Hole
Operating Force	70 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

Part	Circuit	Contact Rating @ Voltage	Switch Travel	Actuator Type	Outline [y]	Outline [x]	Actuator Orientation	Termination Style	Mounting Type	Actuator Height off PCB, Vertical [z]	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Illumination
Omron Electronics Inc-EMC Div B3M-6009	SPST-NO	0.05 A 12 VDC	0.5 mm	Standard	6 mm	6 mm	Top Actuated	PC Pin	Through Hole	7.3 mm	Off-Mom	2000000 Cycles	70 °C	-25 °C	70 gf	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
