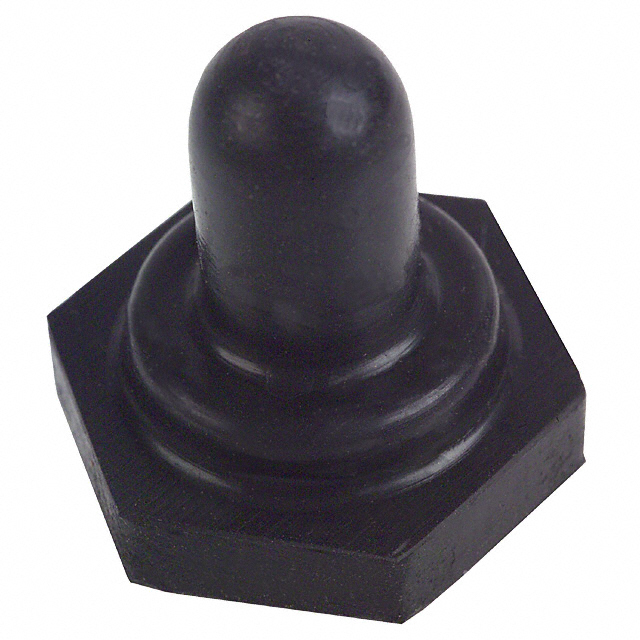

B15320

Obsolete

TE Connectivity Raychem Cable Protection

TOGGLE FULL BOOT BLACK

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

TOGGLE FULL BOOT BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	B15320

Actuator Diameter [diameter]	0.209 "
Actuator Diameter [diameter]	5.31 mm
Color	Black
For Use With/Related Products	MTG, Gemini Series
Ingress Protection	Splash Proof
Material	Neoprene
Mounting Feature	Front of Panel
Size / Dimension	19.5 mm
Size / Dimension [z]	0.768 in
Thread Size	15/32-32 NS-2B
Type	Full Boot, Toggle

Part	Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Material	Ingress Protection	Color	Size / Dimension [z]	Size / Dimension	Mounting Feature	Thread Size	For Use With/Related Products
TE Connectivity Raychem Cable Protection B15320	Full Boot Toggle	0.209 "	5.31 mm	Neoprene	Splash Proof	Black	0.768 in	19.5 mm	Front of Panel	15/32-32 NS-2B	Gemini Series MTG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TOGGLE FULL BOOT BLACK

Technical documentation and resources

No documents available
