315-040-500-204

Active

EDAC Inc.

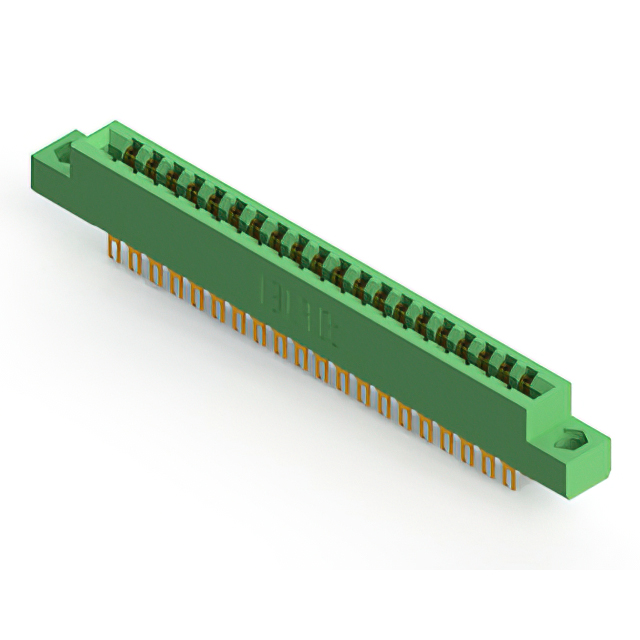

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

315-040-500-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	315-040-500-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

315-040 Series

Part	Termination Rows	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Gender	Flange Feature	Number of Rows	Number of Positions	Material - Insulation	Termination	Color	Pitch [x]	Pitch [x]	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 315-040-500-208	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder Eyelet(s)	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold
EDAC Inc. 315-040-555-268	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Board Edge Straddle Mount
EDAC Inc. 315-040-500-207	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Flush Mount M3 Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder Eyelet(s)	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold
EDAC Inc. 315-040-555-278	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Board Edge Straddle Mount
EDAC Inc. 315-040-500-204	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	2	40	Polyester Thermoplastic	Solder Eyelet(s)	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold		3.96 mm	0.156 in
EDAC Inc. 315-040-556-268	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Board Edge Straddle Mount
EDAC Inc. 315-040-500-278	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder Eyelet(s)	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold
EDAC Inc. 315-040-556-202	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Board Edge Straddle Mount	3.25 mm	0.128 "	Card Extender
EDAC Inc. 315-040-555-258	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Board Edge Straddle Mount
EDAC Inc. 315-040-521-203	2	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Floating Bobbin Flush Mount	2	40	Polyester Thermoplastic	Solder	Green	0.156 in	3.96 mm	Non Specified - Dual Edge	Semi Bellows	10 Áin	0.25 Ám	20	20	20	Gold	Panel Mount Through Hole	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.48
Newark	Each	25	$ 9.96
		50	$ 9.73
		100	$ 9.26
		250	$ 9.03
		500	$ 8.71

Description

General part information

315-040 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
